| Model NO. | CY-1600X-III-HVC |
| Structure | Desktop |
| Material | Steel |
| Certification | CE Certified |
| Application | Laboratory Research |
| Processing Tube | High Purity Alumina |
| Heating Rate | 1-15°C/Min. |
| Gas System | Mass Flow Meter |

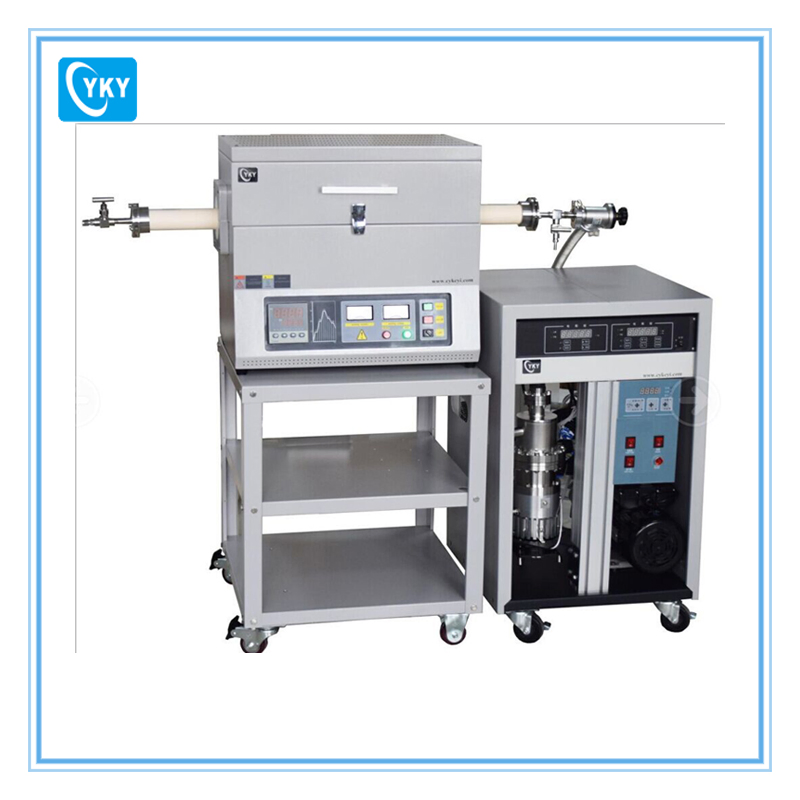

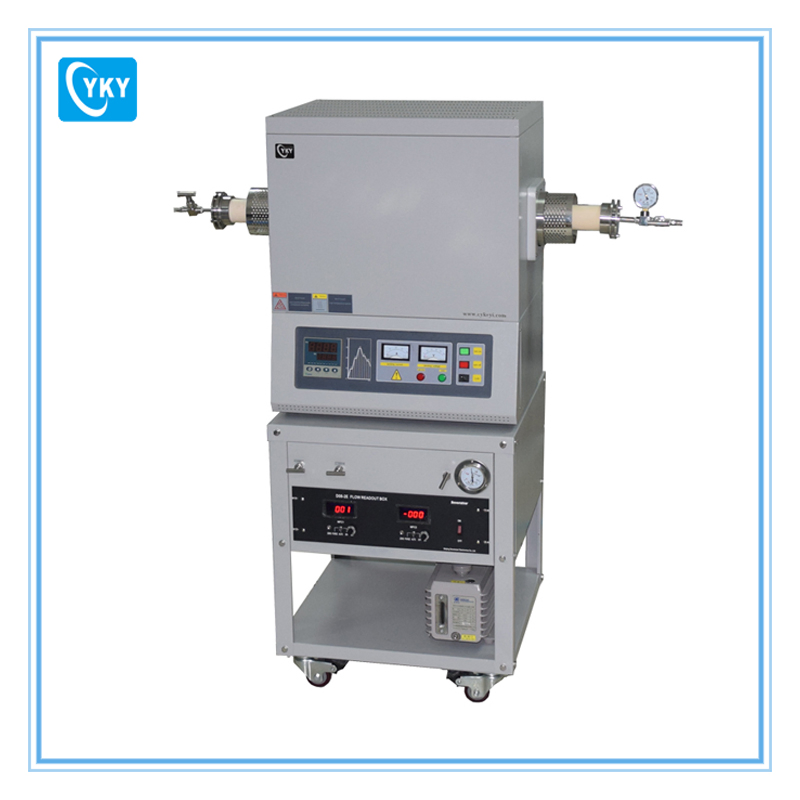

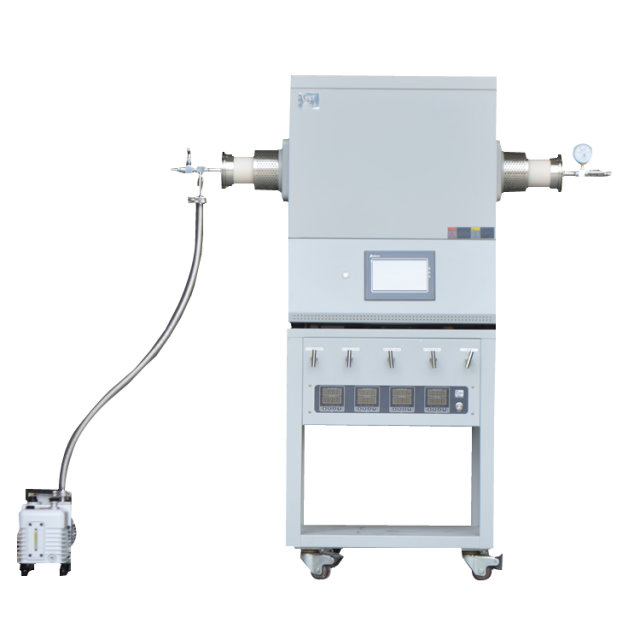

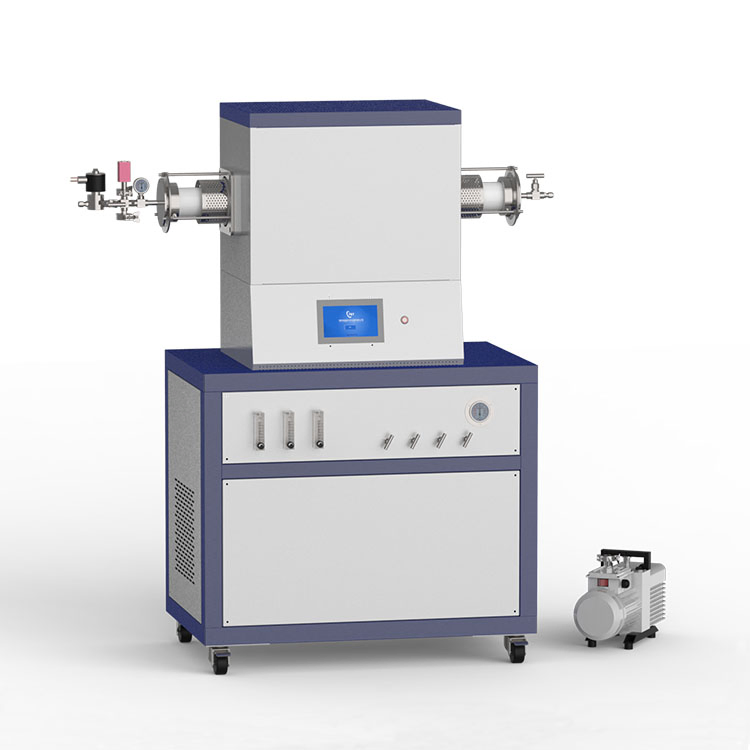

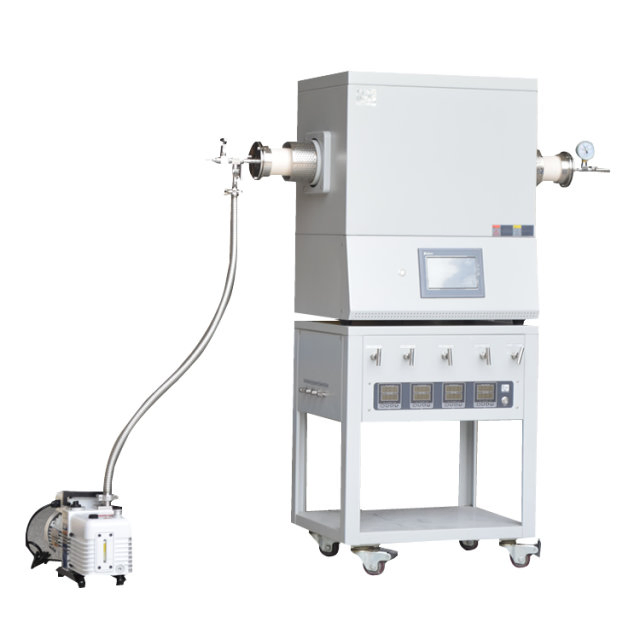

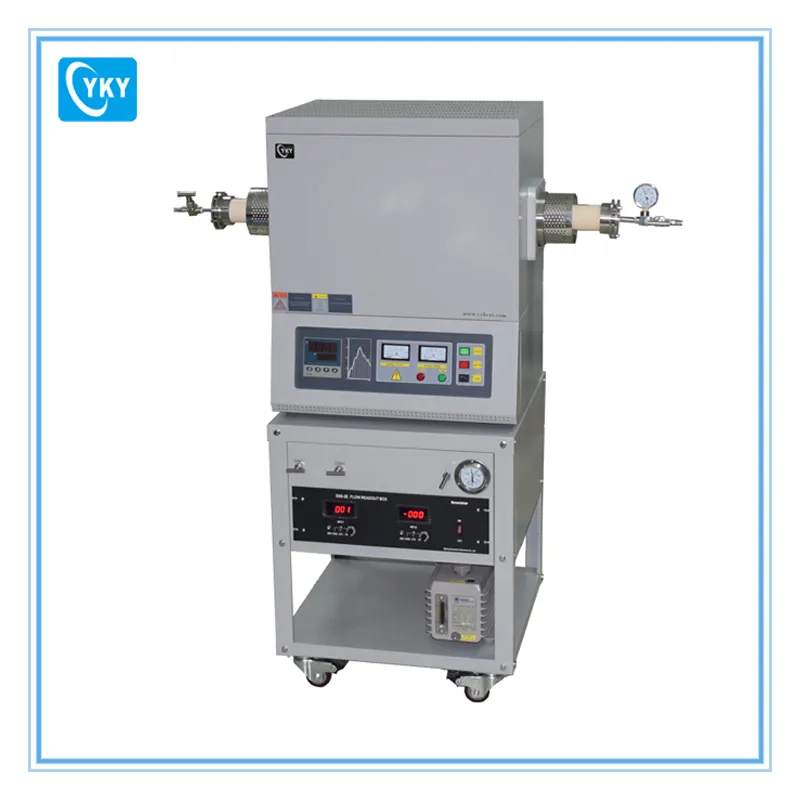

The CVD-1600X-III-HVC series furnace workstation is designed for the deposition of Carbon and metal Oxidize. It consists of a 1600X-III series three-zone tube furnace, a precision mass flow gas control station, and a high vacuum station.
| Component | Feature | Detail |
|---|---|---|
| Tube Furnace Unit | Casing | Double layer steel casing with air cooling; automatic cooling when case > 55°C. |
| Heating Element | MoSi2 Heating element | |
| Temperature Control | Three precision controllers for separate zone management; 30-step PID programmable. | |
| Heating Zone | Total 600mm (220mm + 200mm + 200mm). | |
| High Vacuum Station | Working Range | From 1000 mbar to <1E-7 mbar |
| Ultimate Pressure | <1E-8 mbar (leak-free) | |
| Gas Control | MFC Structure | 3 channel MFC made of 316 stainless steel; 0~500SCCM range. |
