🟦 Basic Information
Type
Cleaning & Filling Teeth Equipments
Certification
CE / ISO 13485
Specification
22mm or 26mm
🟦 Key Features
✔

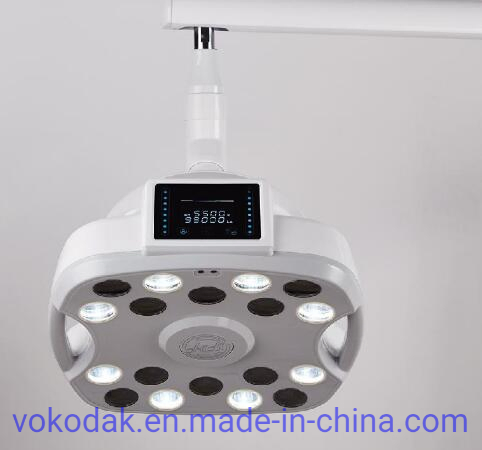

High-Precision Lighting: 18 LED lens provide a real shadowless lighting effect, ideal for implant surgery.
✔
Adjustable Color Temperature: 4,000K-5,500K range to suit different clinical needs.
✔
Optimized Focus: 120mm light spot with excellent focus at a perfect distance of 900mm.
✔
Ergonomic Comfort: Average and naturally spread out soft light ensures comfort for both patient and dentist.
✔
Advanced Control: Features LED touchscreen control and a responsive sensor switch.
✔

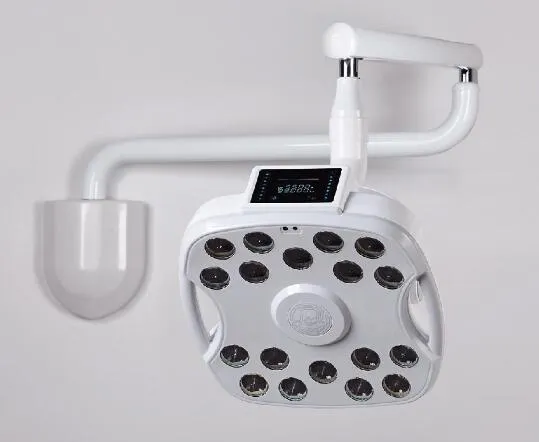

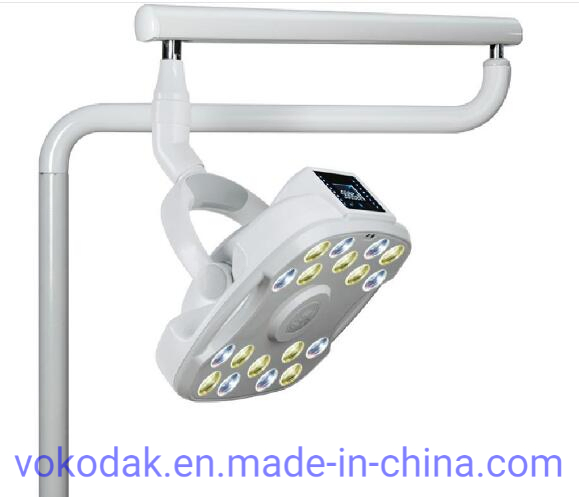

Versatile Mounting: Available in lamp type, wall-mounted type, and moving floor type.
🟦 Technical Specifications
| Power Supply |
AC12V - 24V |
| Power Consumption |
7-30W (Rated 54W) |
| Light Intensity |
7,000 lux - 120,000 lux |
| Dimension of Pattern |
85 * 160 mm |
| Color Temperature |
4,000 - 5,500 K |
| CRI |
85% |
| Shadow (Solution) |
< φ2 |
| Eye Intensity |
300 lux |
| Net Weight |
2430g / 2970g (with camera) |
| Bulb Power |
2.4 - 2.6V |

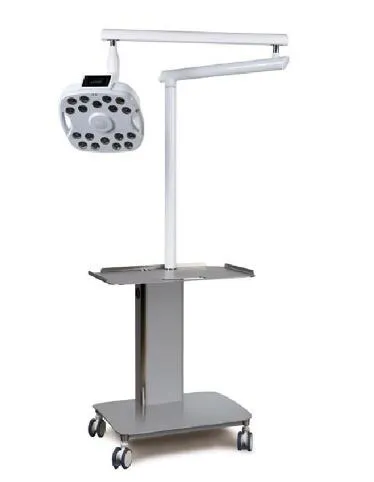

🟦 Product Showcase
🟦 Related Products
Frequently Asked Questions
Q1: What is the maximum light intensity of this dental lamp?
The light intensity is adjustable ranging from 7,000 lux up to 120,000 lux.
Q2: Can the color temperature be adjusted?
Yes, the color temperature is adjustable between 4,000K and 5,500K to provide the best visibility for different procedures.
Q3: Is the lighting truly shadowless?
Yes, the 18 LED lens design is specifically engineered to provide a real shadowless lighting effect, which is critical for implant surgery.
Q4: What are the installation options available?

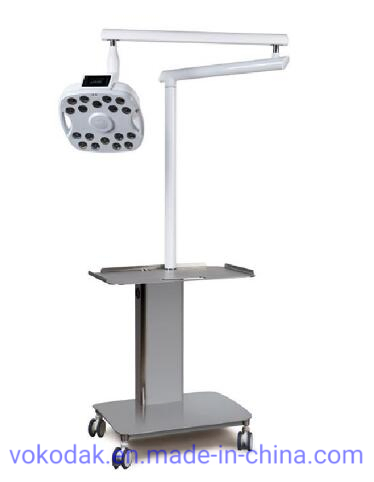

We offer three optional types: standard lamp type, wall-mounted type, and moving floor type.
Q5: Does it feature modern control interfaces?
Absolutely. The unit is equipped with an LED touchscreen control panel and a hands-free sensor switch for better hygiene and convenience.
Q6: What materials are used in the construction?
The main body and structure are made of high-quality Aluminum for durability and efficient heat dissipation.
