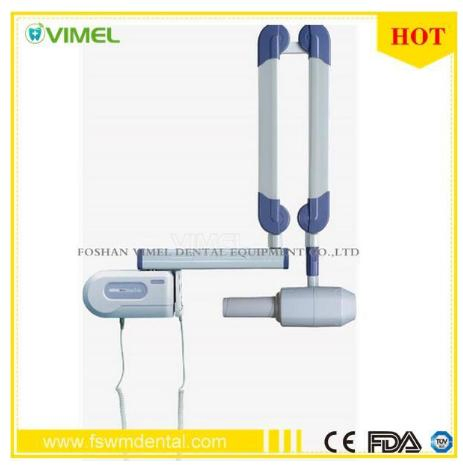

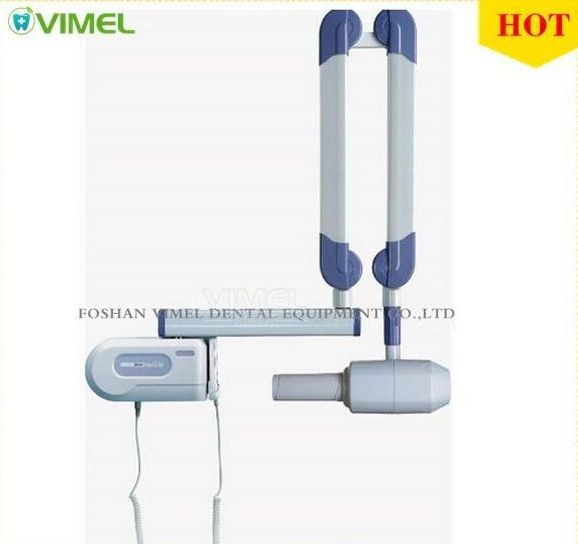

The smallest focus (0.8mm) in the tube-head makes the images clearer and reduces the X-ray dose by 16-20 times compared with other products. The leaking radiation rate around 1m from focus is close to 0, and the head window is made of 1.5mm aluminum to filter X-ray, providing superior protection for both patients and doctors.
| Model | Ray68(S) |
| Voltage | 220V/50Hz±10% or 110V/60Hz±10% |
| Max power consumption | 900 VA |
| Electric current | 4A |
| Focus | 0.8 mm |
| Tube voltage | 70KV ±10% |
| Anodic electric current | 7mA±15% |
| Anodic angle | 19º |
| Exposure time | 0.06-2.00s |
| Inherent Filtration | ≥2.1 mm AL |
| Weight | 30KG |
1. Ensure enough space for operation around the device.
2. Check the green status lamp after starting the power switch.
3. Test the manual switch from a distance to verify the yellow X-ray lamp and buzzer.
4. Tube head tightness can be adjusted by rotating the horizontal axes if necessary.
Main Product: Two-year warranty from the date of purchase.
X-Ray Tube: Extended five-year warranty.
