For the first time, we have successfully applied photon-counting X-ray detector technology to dentistry, while promoting cost reduction and performance improvement.

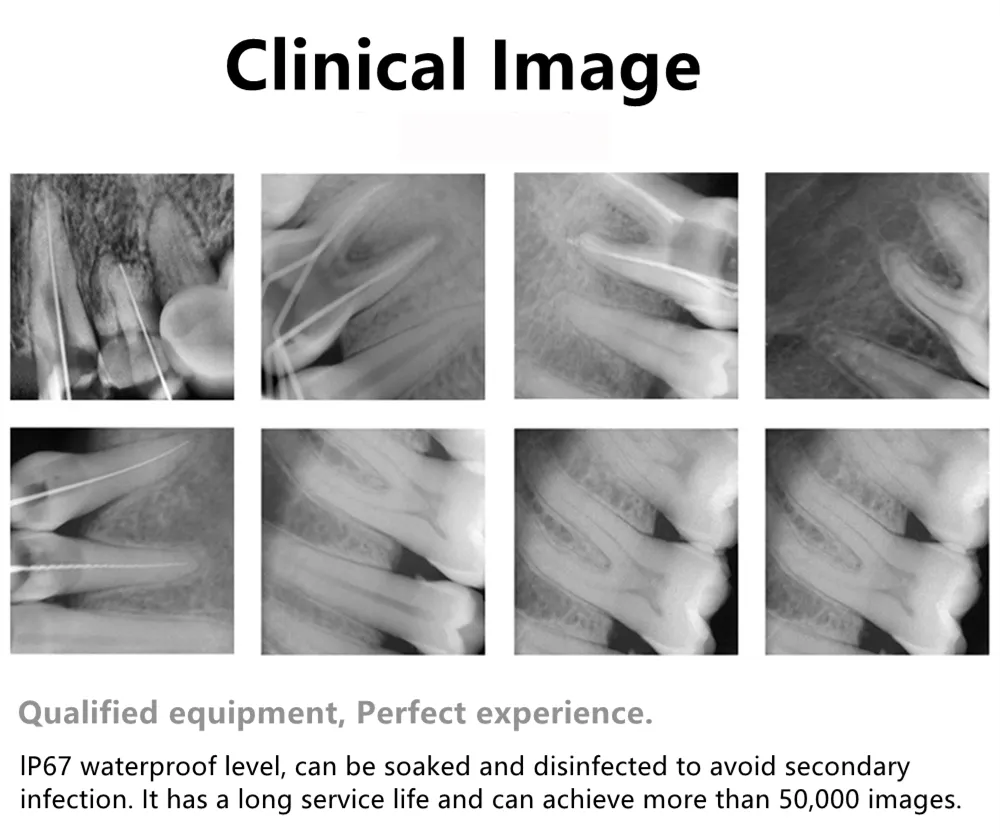

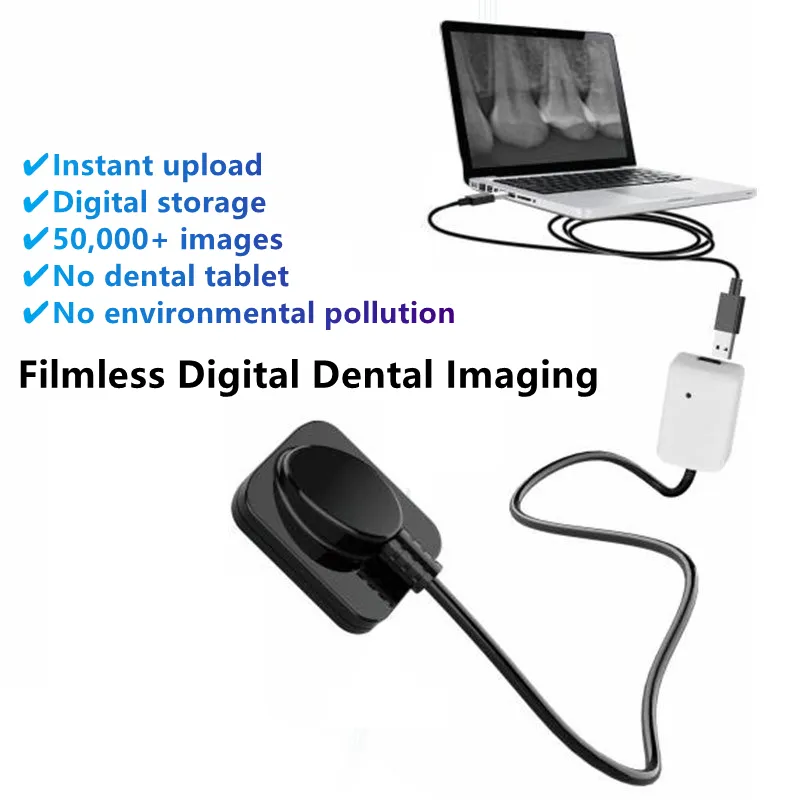

To create one of the most cost-effective intraoral dental sensors on the market. The high dynamic range can clearly display the tooth and periodontal tissue. The images are clear and detailed, and even the smallest bifurcations are clearly visible. Real-time image uploading, high-quality imaging, and easy-to-operate digital processes can greatly improve the energy efficiency of dental treatment.
| Weight | 0.1KG |
|---|---|

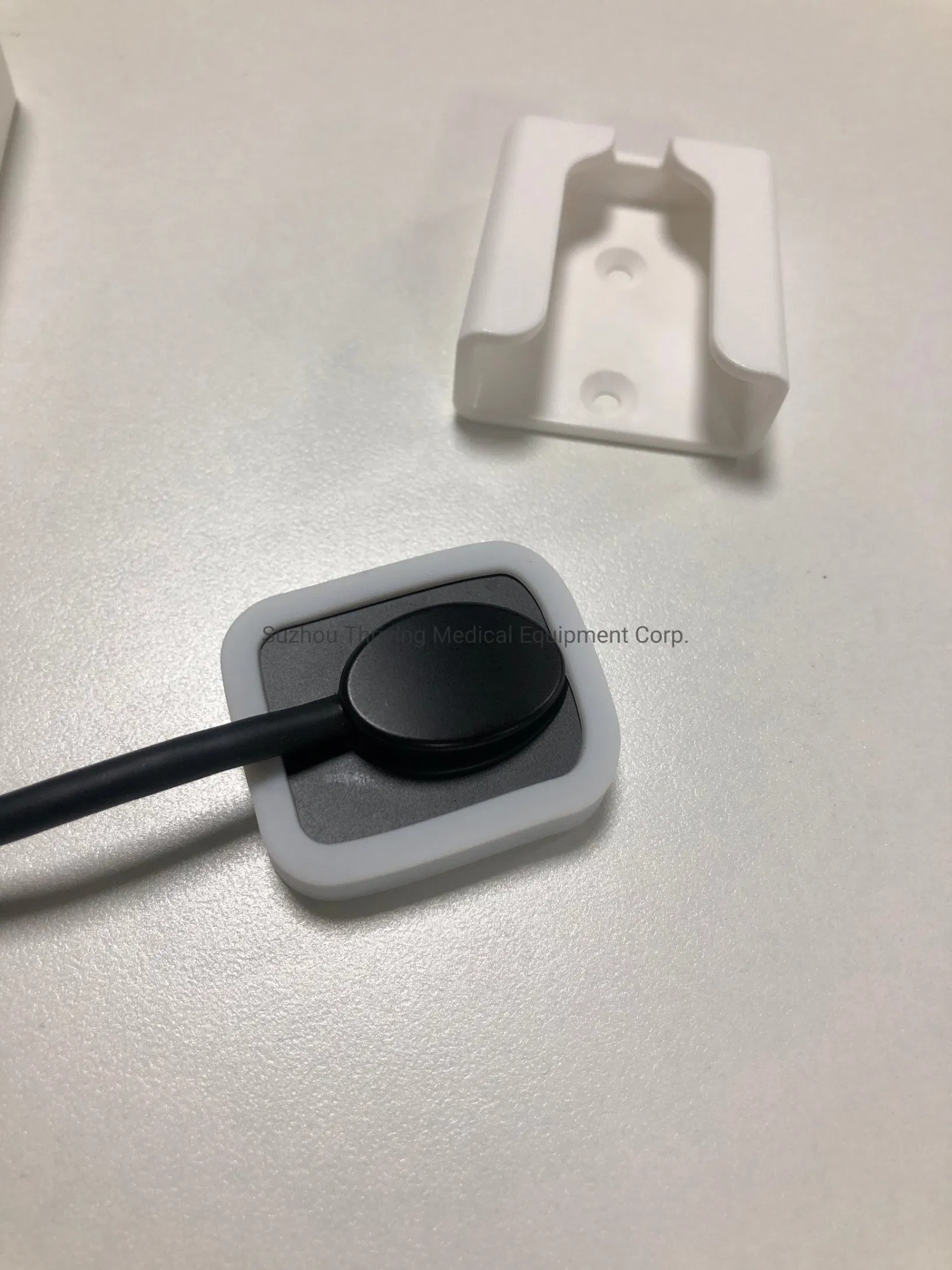

| Size (Sensor) | 26.5mm×32mm×11.7mm |

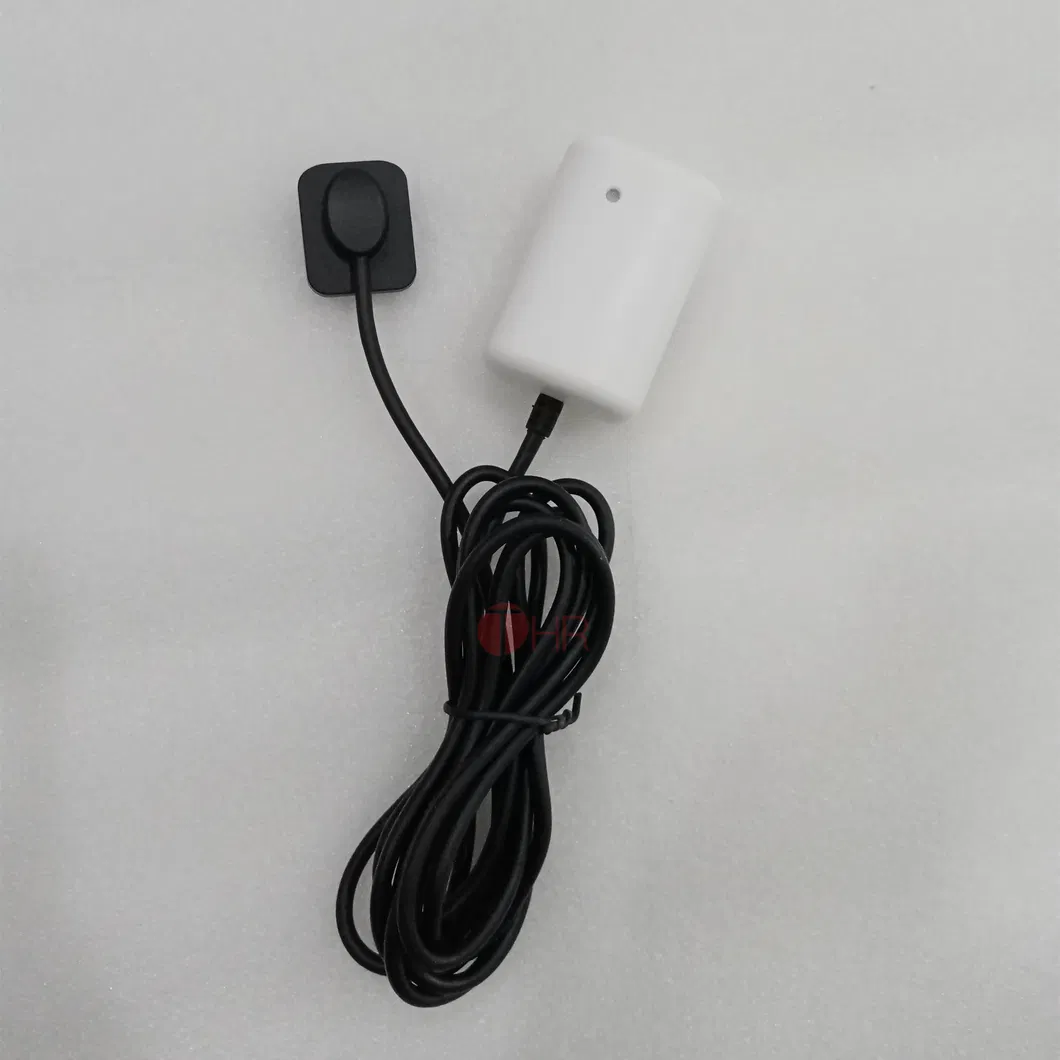

| Size (Adaptor) | 60mm×40mm×29.2mm |
| Operation Mode | Continuous |
| Operation Temp | +10ºC~+40ºC |
|---|---|
| Storage Temp | -20ºC~+55ºC |
| Operation Humidity | ≤80% (No condensation) |
| Atmospheric Pressure | 700hPa~1060hPa |
| Spatial Resolution | ≥7Lp/mm |
|---|---|
| Low Contrast Resolution | Displays holes 1mm-2.5mm on 0.5mm Al foil |
| Image Uniformity | ≤2% |
| Effective Image Area | 20.16mm*20.16mm |
| Ghost and Artifact | None |
