Medical Equipment Ysx1006p Factory Supply Clinic 50/60kv Portable Dental X-ray Unit

Applicable Departments:	Oral Rehabilitation Department
Certification:	ISO, CE
Type:	X-Ray Equipment

Basic Information

Model NO.

YSX1006P

Material

Aluminum

Transport Package

Wood Case

Specification

560*560*150MM 5kg

Origin

China

Capacity

5000 pieces/Year

Product Description

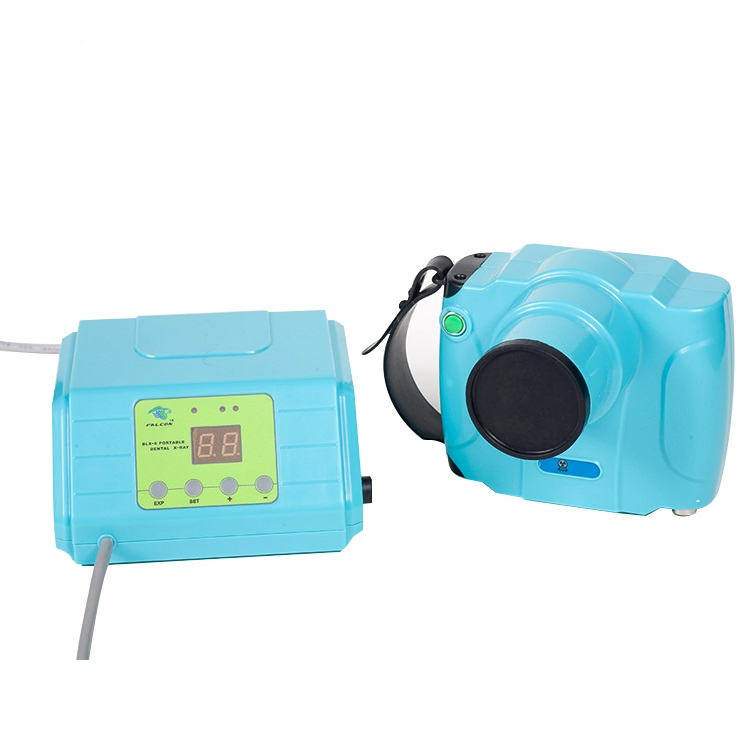

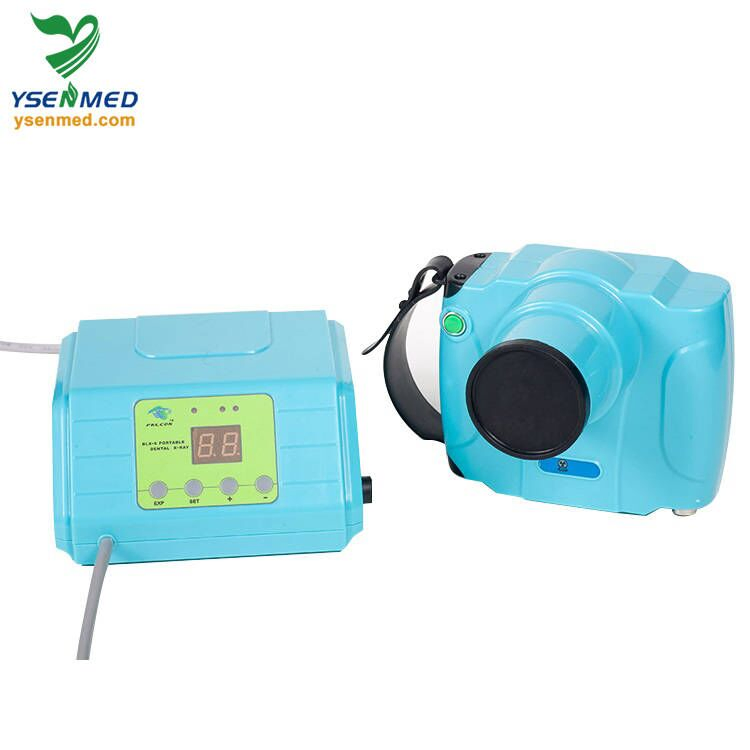

Factory Supply Medical Clinic Equipment 50/60kv Portable Dental X-ray Unit YSX1006P

Core Features

⭐

High-frequency design makes the unit portable and compact, saving valuable clinic space.

⭐

Precise control of exposure time and repetition for consistent, customized imaging.

⭐

Simple internal structure ensures easy operation and low maintenance requirements.

⭐

Fast response speeds paired with highly accurate output indexes.

⭐

Adjustable KV and MA settings for versatile clinical applications.

⭐

Standard DC outlet power supply—no special electrical wiring required.

⭐

Equipped with Toshiba 0.3x0.3 micro-focus spherical kinescope for crystal-clear images.

⭐

Multiple control options: Mainframe, headtube, or the included remote control.

Technical Specifications

Parameter	Details
Exposure Time	0.5 S - 9.9 S
Power Input	220V±10% / 50Hz / 0.5Ω
Rated Power/Current	60kv, 0.2mA, 0.5s, 12W
Input Voltage	160VA
Frequency	30KHz
Tube Voltage	60KV
Radiation Leakage	<20ugy/h
Skin to Cone Distance	≥20CM
Net / Gross Weight	2.2KG / 5KG
Main Part Size	560560150MM
Environment Temp	5-40ºC (Humidity <80%)

Packing List

Main unit, Headtube, Connect cables, Remote control, Blue tube, and other accessories for testing.

Product Gallery & Details

Frequently Asked Questions

Is the YSX1006P dental x-ray unit easy to move?

Yes, the unit is designed with high-frequency technology, making it compact and lightweight (Net weight 2.2kg), which is ideal for space-saving and portability in dental clinics.

What kind of image quality can I expect?

The device features a Toshiba 0.3x0.3 micro-focus spherical kinescope, which ensures high-definition, crystal-clear imaging for accurate diagnosis.

Does this machine require special electrical modifications?

No, unlike large-scale X-ray machines, this portable unit can be powered directly from a regular DC outlet, simplifying installation.

Can I control the exposure remotely?

Yes, the unit can be operated via the mainframe, the headtube, or using the remote control included in the packing list for added safety and convenience.

What film type is compatible with this unit?

The YSX1006P is designed to use 30mm×40mm Kodak film for capturing dental images.

Is the radiation leakage within safe limits?

Absolutely. The radiation leakage is strictly controlled at <20ugy/h, ensuring safety for both the operator and the patient during clinical use.
