Getidy High Frequency Wall Mounted Dental X Ray Unit Dys-W

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
DYS-W
Type
Cleaning & Filling Teeth Equipments
Material
PVC
X-Ray Bulb Focal
0.3mm
Current
0.5mA
Package
Hard Paper Carton
Specification
38x26x22cm
Origin
China
HS Code
90184990
Capacity
200PCS /Month

Moving Type Digital Dental X-Ray Unit

Advanced Imaging with Low Radiation Protection

The smallest focus (0.8mm) in the tube-head makes the images clearer and reduces the X-ray dose by 16-20 times compared with other products. The leaking radiation rate around 1m from focus is close to 0, and the head window is made of 1.5mm aluminum to filter X-ray, providing superior protection for both patients and doctors.

  • Precise Control: Microprocessing control allows exposure time accuracy to 1/100 second with digital display.
  • Stable Positioning: Imported balance arm ensures flexible and stable location during procedures.
  • Refined Design: The column is constructed from modern, refined aluminium alloy.
  • Parallel Focus: Contributes to obtaining super clear images with ease.
  • Enhanced Safety: Ray leakage is 68 times lower than national standards (0-0.007mGy/h), requiring no special X-ray protection room.
  • Smart Functionality: Includes error code display and parameter saving functions.
  • Voltage Stability: Standard voltage stabilizer prevents damage from power fluctuations, extending machine life.
  • Digital Ready: Reserved digital camera mode for easy upgrading to digital developing systems.

Technical Specifications

Anodic Angle19 degree
Tube Voltage70KV
Current of Tube-head7mA
Radiation Leakage1m range < 0.007mGy/h
Round Output SectionFocus Skin Distance - 20cm

Product Visuals

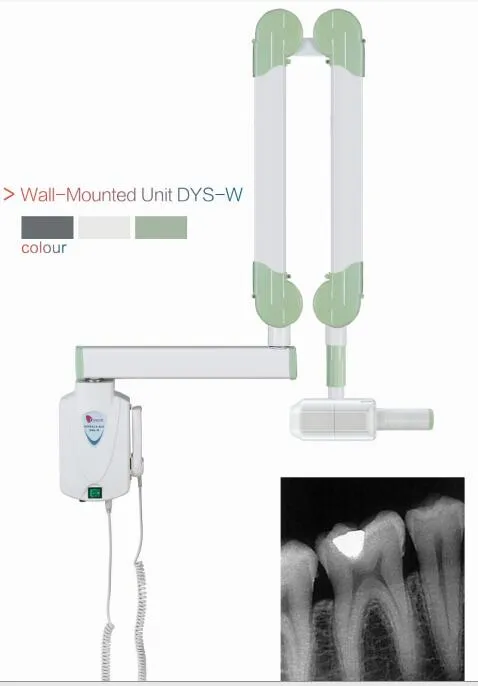

Dental X Ray Unit

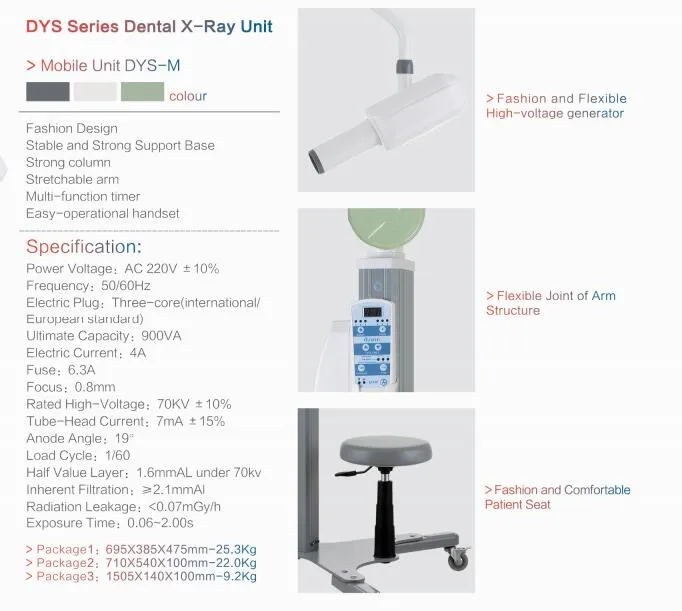

Digital Dental X Ray Unit Full View
X-Ray Unit Structure

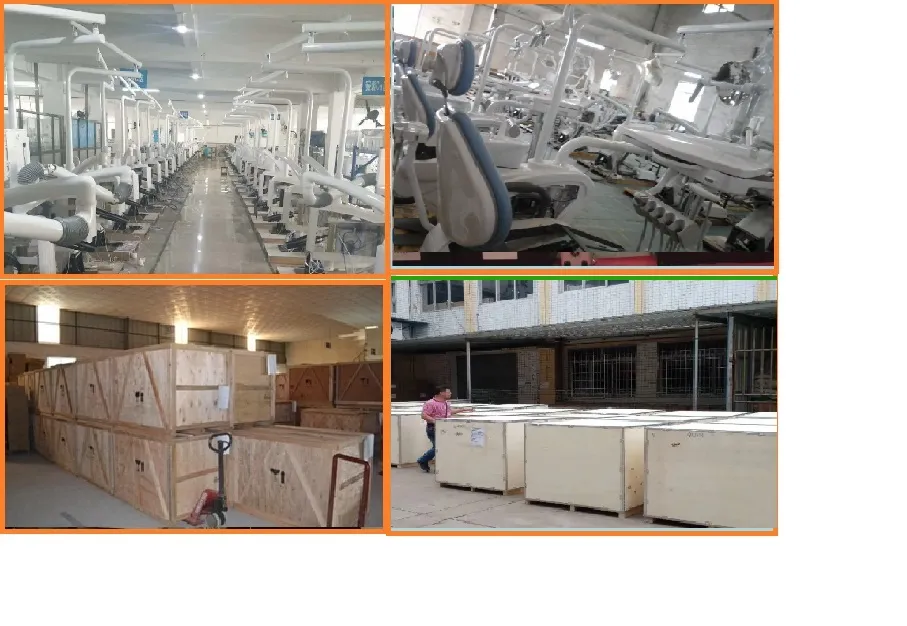

X-Ray Installation

Frequently Asked Questions

What is the focus size of this dental X-ray unit?
The unit features a very small focus of 0.8mm, which ensures high image clarity while significantly reducing the radiation dose.
Is it safe to operate without a shielded room?
Yes. Due to the tiny X-ray source and tightly sealed ball sleeve, the radiation leakage is lower than national standards by 68 times (0-0.007mGy/h), making it safe for doctors and patients even without a specialized protection room.
How accurate is the exposure time control?
The unit utilizes microprocessing to achieve precise time control, accurate to 1/100th of a second, with all settings displayed digitally.
What is the tube voltage and current for this model?
The DYS-W model operates with a tube voltage of 70KV and a tube-head current of 7mA.
Can this machine be upgraded to a digital system?
Yes, the unit includes a reserved digital camera mode, allowing for an easy upgrade to a digital developing system in the future.
Does it handle voltage fluctuations?
Yes, it comes with a standard voltage stabilizer to prevent damage from voltage hunting and extend the overall service life of the machine.
