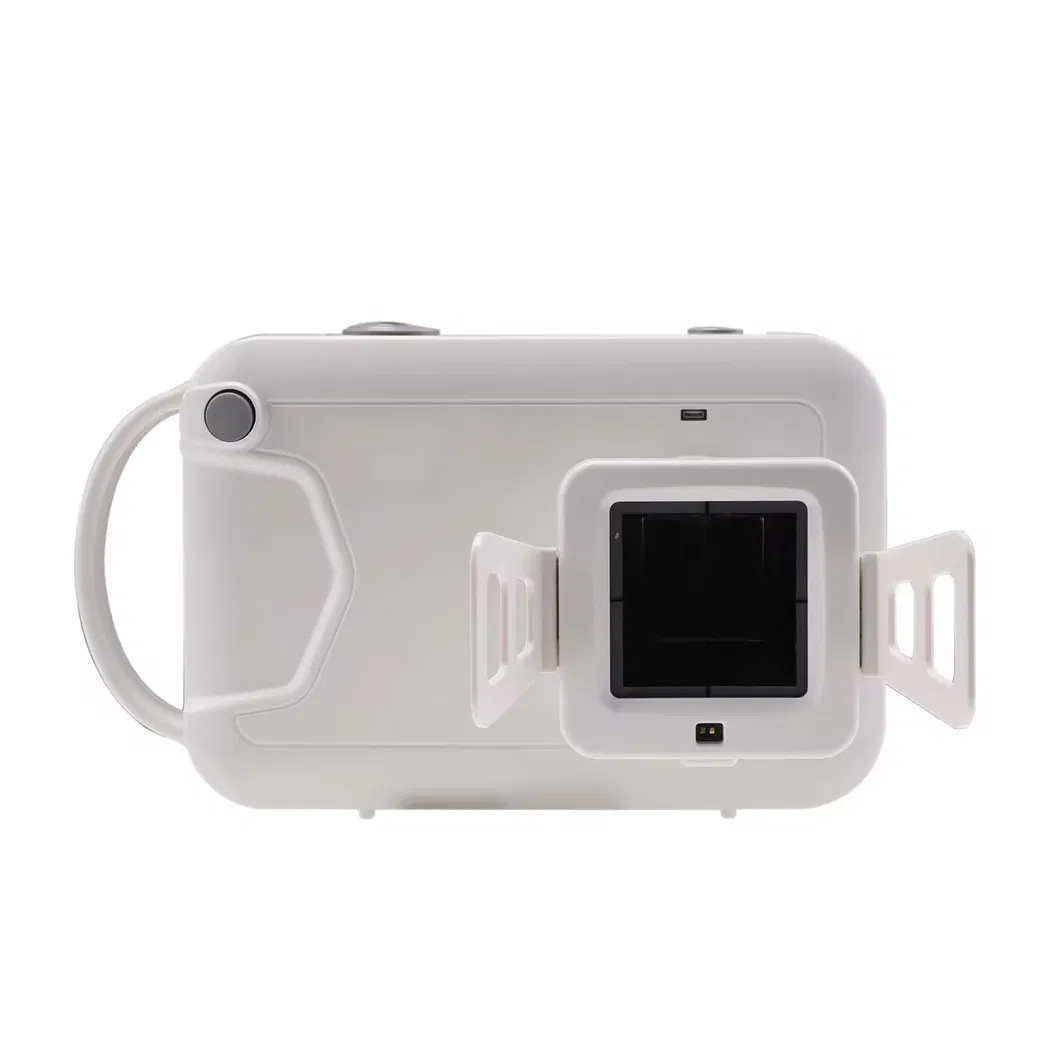

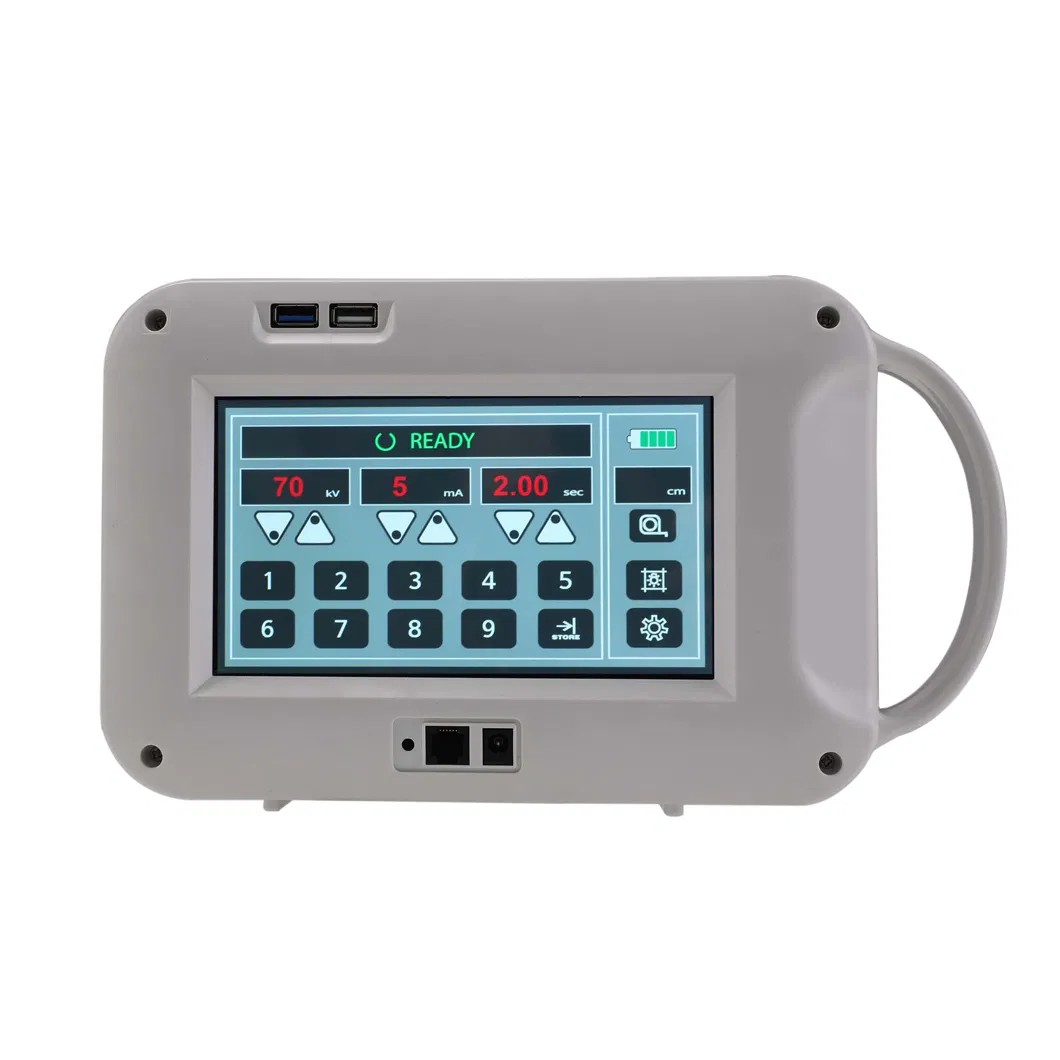

High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
1 / 5
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System
High Quality Dental Medical Portable Hand Held Digital X Ray System

High Quality Dental Medical Portable Hand Held Digital X Ray System

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
HFX-01
Certification
CE, ISO13485
Dimension
285mm X 265mm X 168mm
Weight
3.2kg±5%
Screen
7 Inches (1024X600)
Battery
22.2V Polymer Lithium Ion, 2200mAh
Capacity
500 Piece/Month
Package
Wooden Case
📋

Product Description

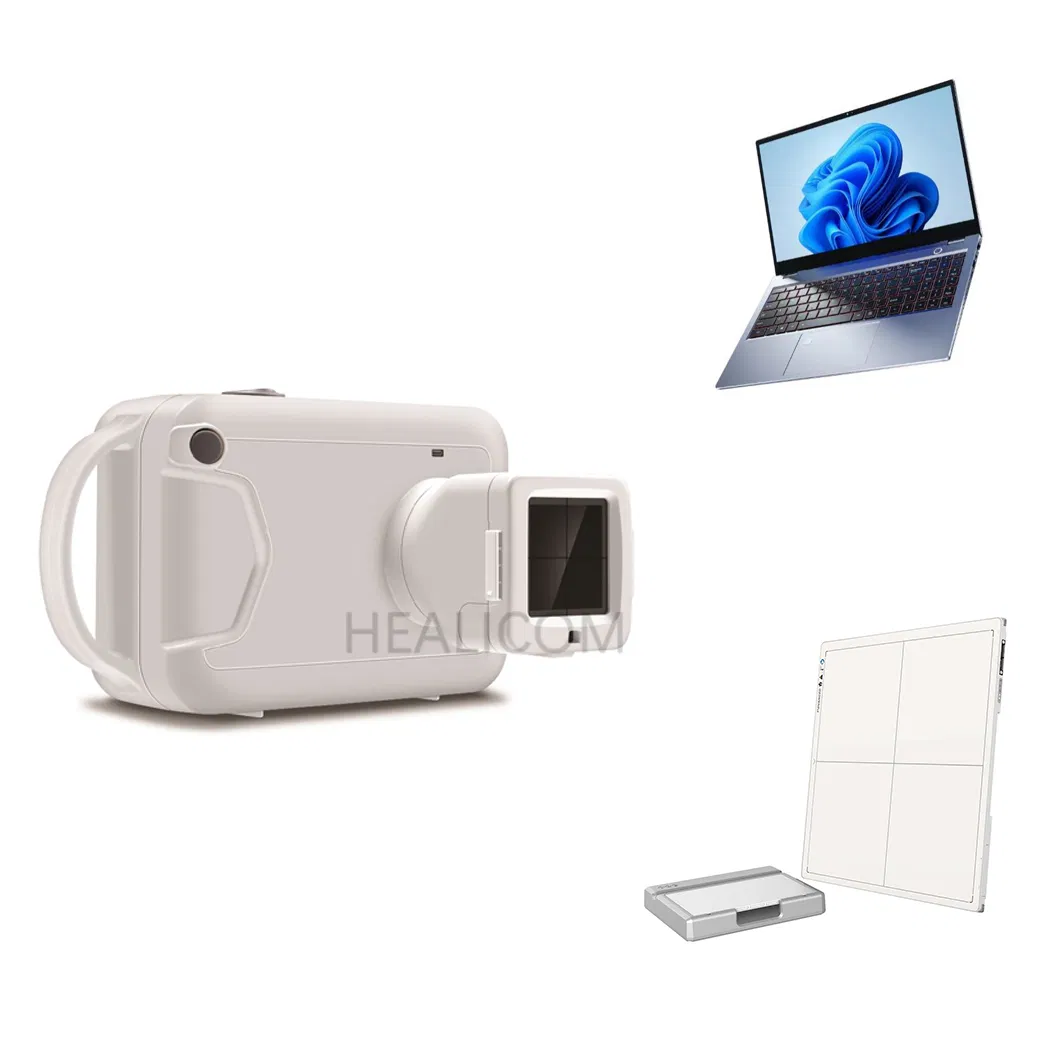

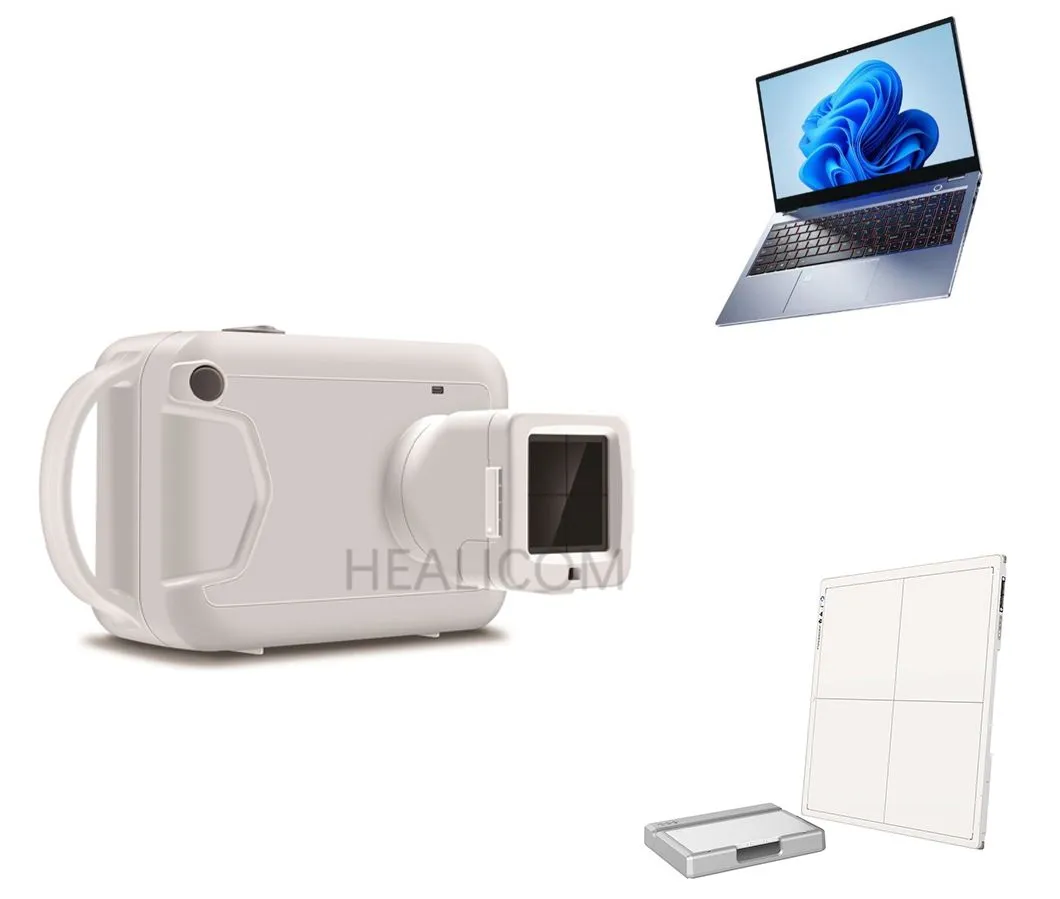

HFX-01 Digital Portable X-ray System with Digital Detector and Laptop Computer

Digital Portable X-ray System

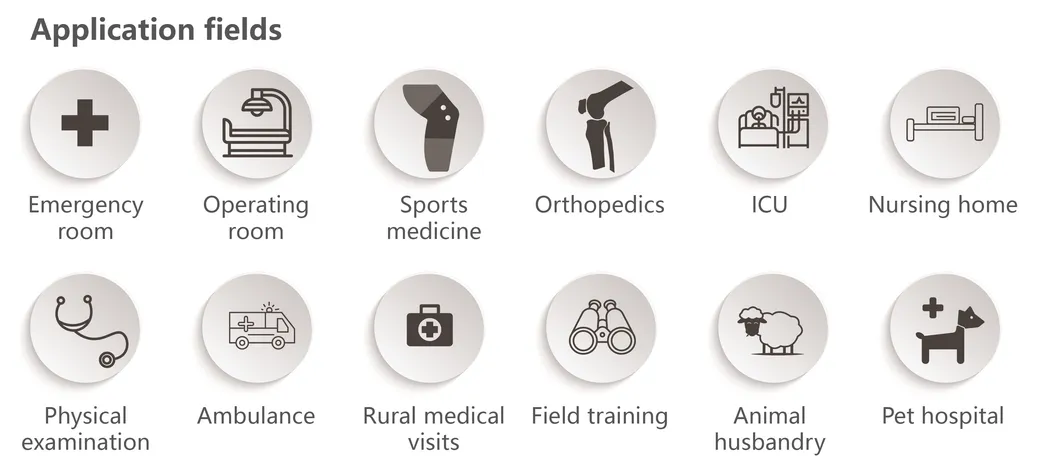

With a compact design, the HFX-01D wireless and battery-operated system allows operators to take X-ray images without the dedicated physical space required for a conventional radio-graphic system. It applies to limbs, cervical spine, head, chest, etc.

Key Functional Features:
Compact design: Requires minimal space and accommodations and can be moved as needed.
Integrated software solution: Built-in workstation doesn't require installation or additional equipment.
Multiple angle imaging: Flexibility to take images from multiple angles without moving patients.
High Definition Display: 7" touch screen design brings easy operation and clear images.
Long Battery Life: A fully charged battery can expose more than 120 images at full power.
Radiation Safety: Minimize radiation to patient and operator with the lowest possible dose.

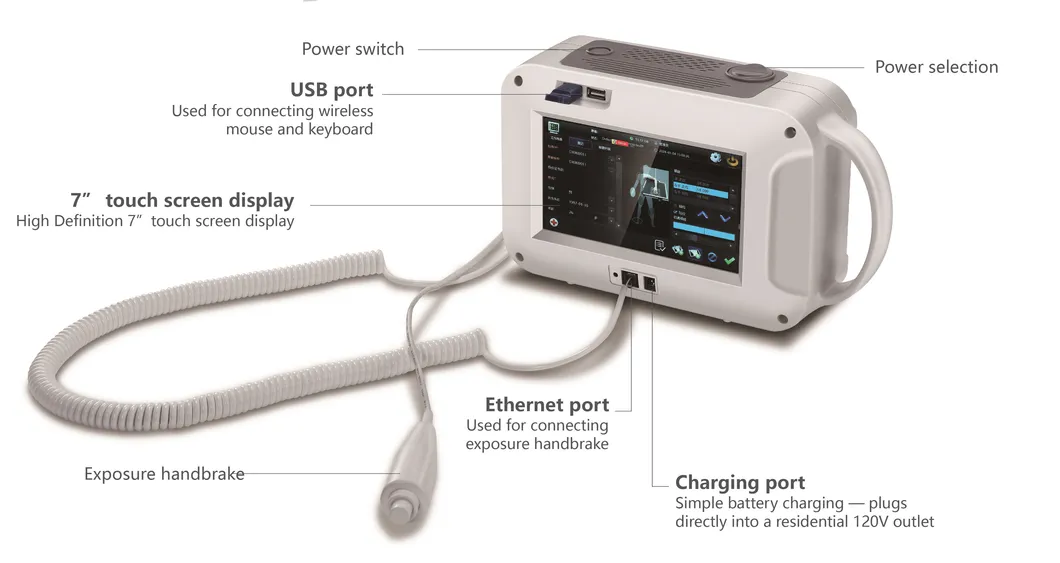

X-ray Operation

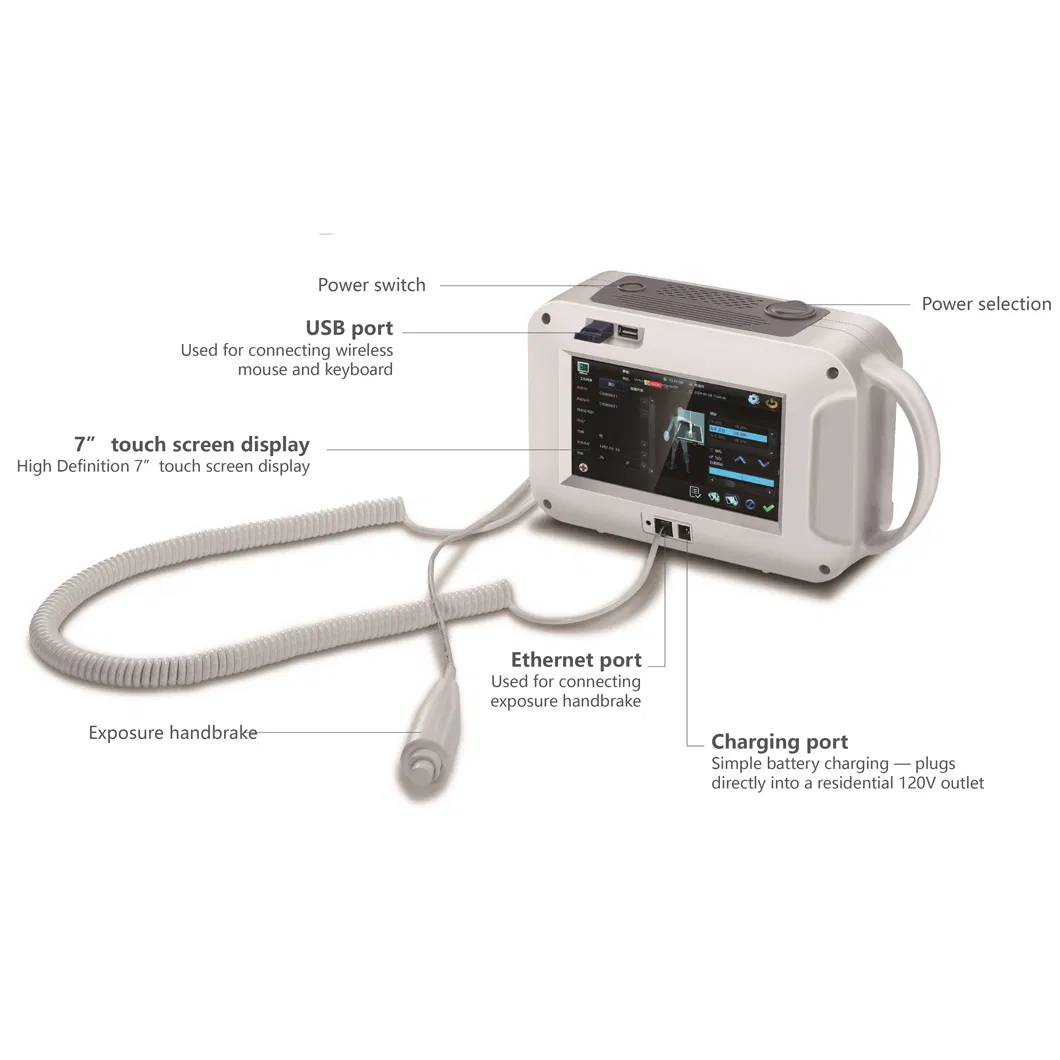

Portable X-ray Device

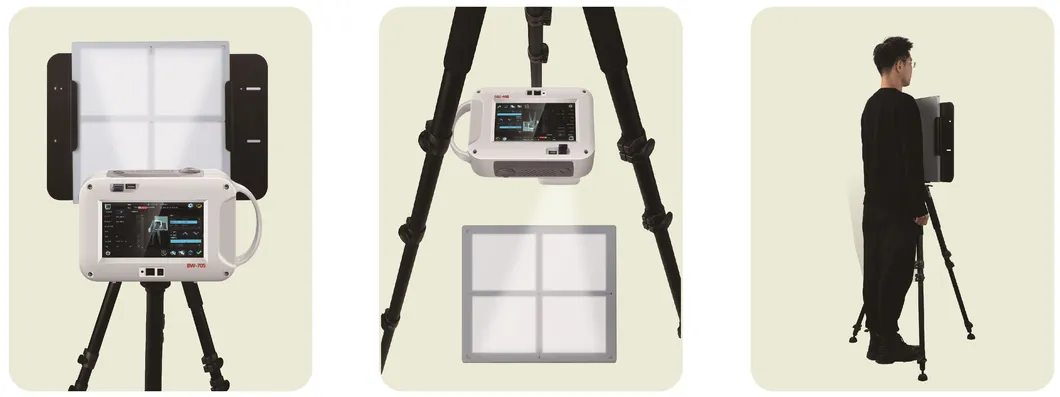

Screen Display

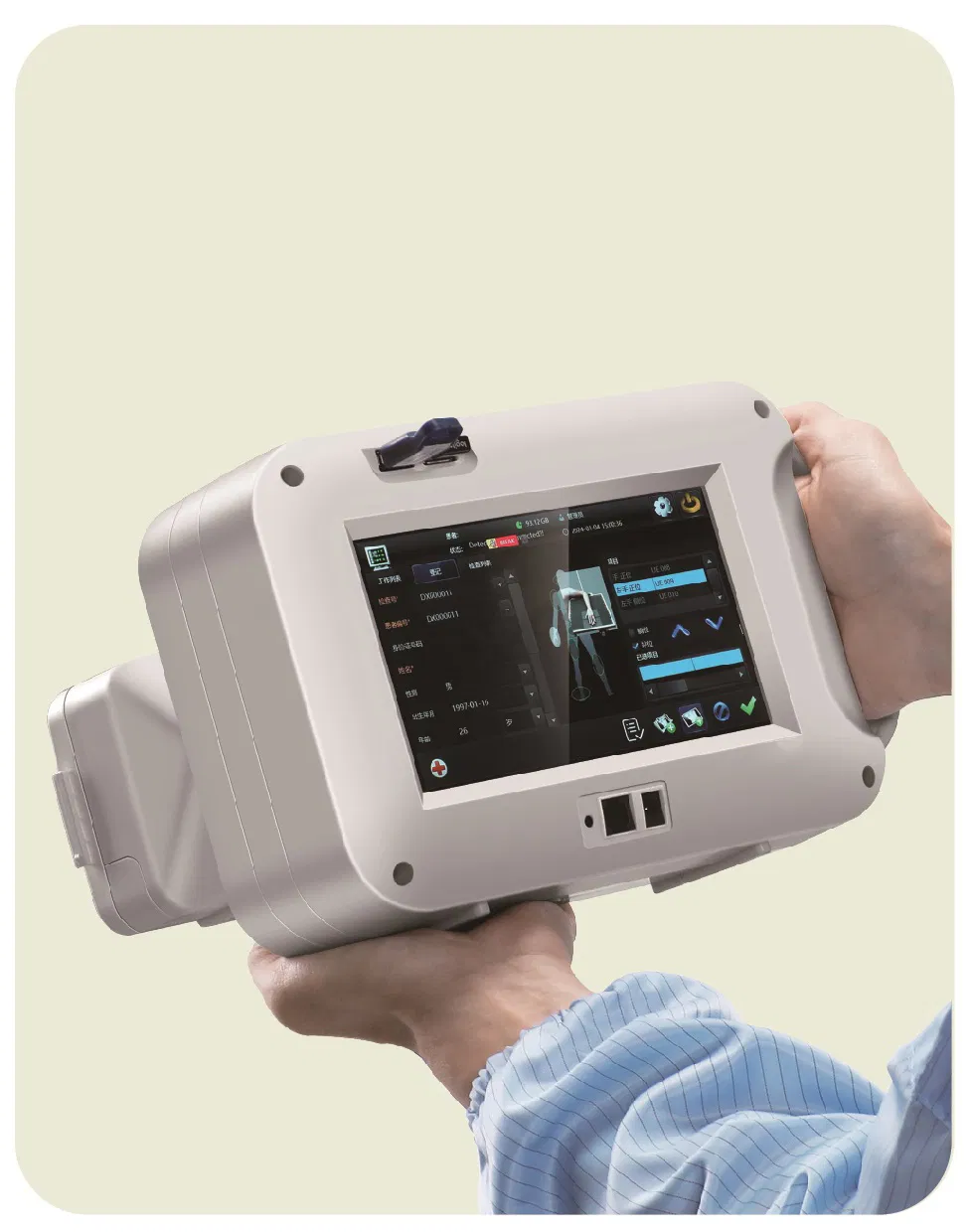

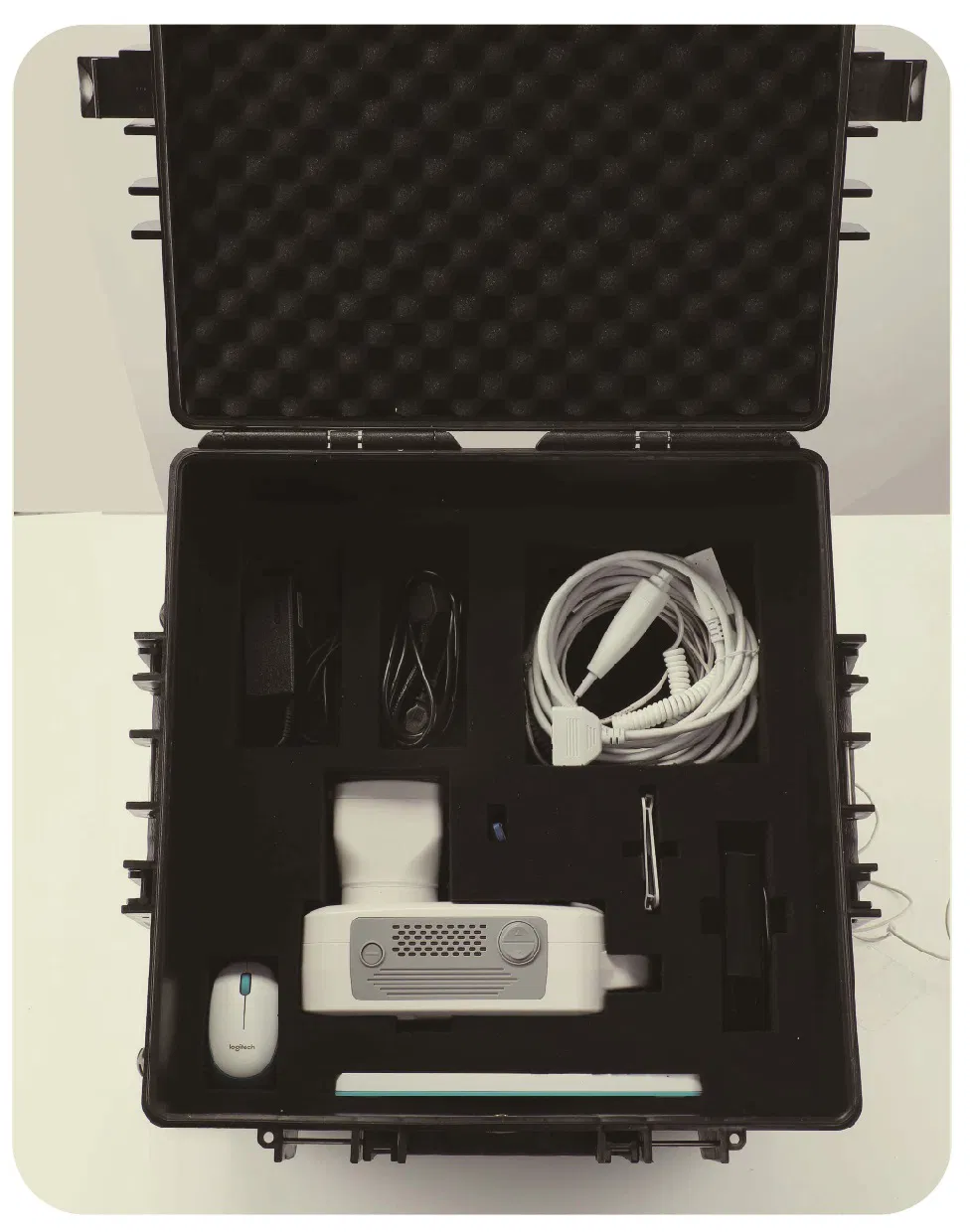

Clinical Image 1 Clinical Image 2 Clinical Image 3
⚙️

Device Parameters

Project Specification
Charger Input Mono-phase, AC power 220V±10%
Frequency 50Hz±1Hz
Output 25.2 VDC, 1.5A
Battery 22.2V (polymer lithium ion), 2200mAh
kV (Adjustable) 50 - 70 kV (step: 1 kV)
mA (Adjustable) 2 - 5 mA (step: 1 mA)
X-ray release time range 0.03-0.20secs (step: 10ms) / 0.20-2.00secs (step: 50ms)
Screen 7 inches (resolution: 1024x600)
X-ray Tube Model C.E.I OX/70-3
Inherent filter 0.5mm AL
Focus point 0.3 * 0.3mm
Dimension 285mm x 265mm x 168mm
Weight 3.2kg±5%
🏭

Workshop & Quality Control

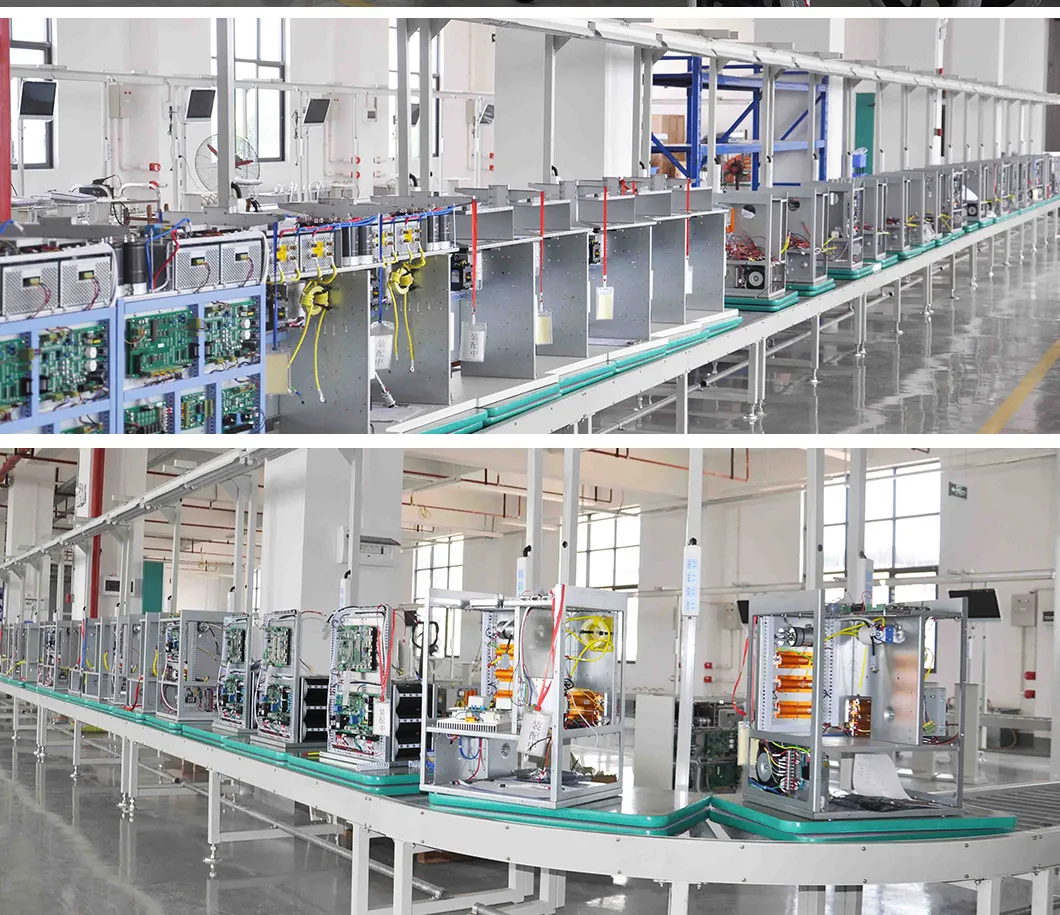

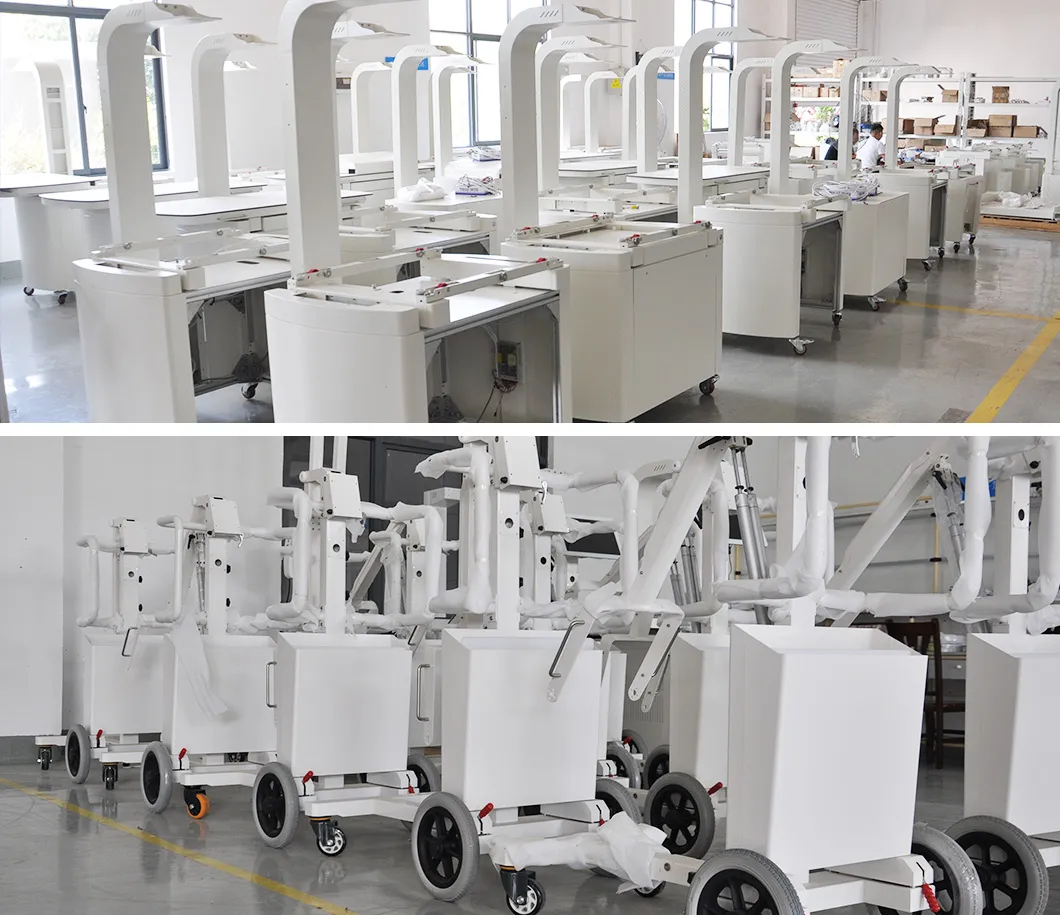

Workshop 1 Workshop 2

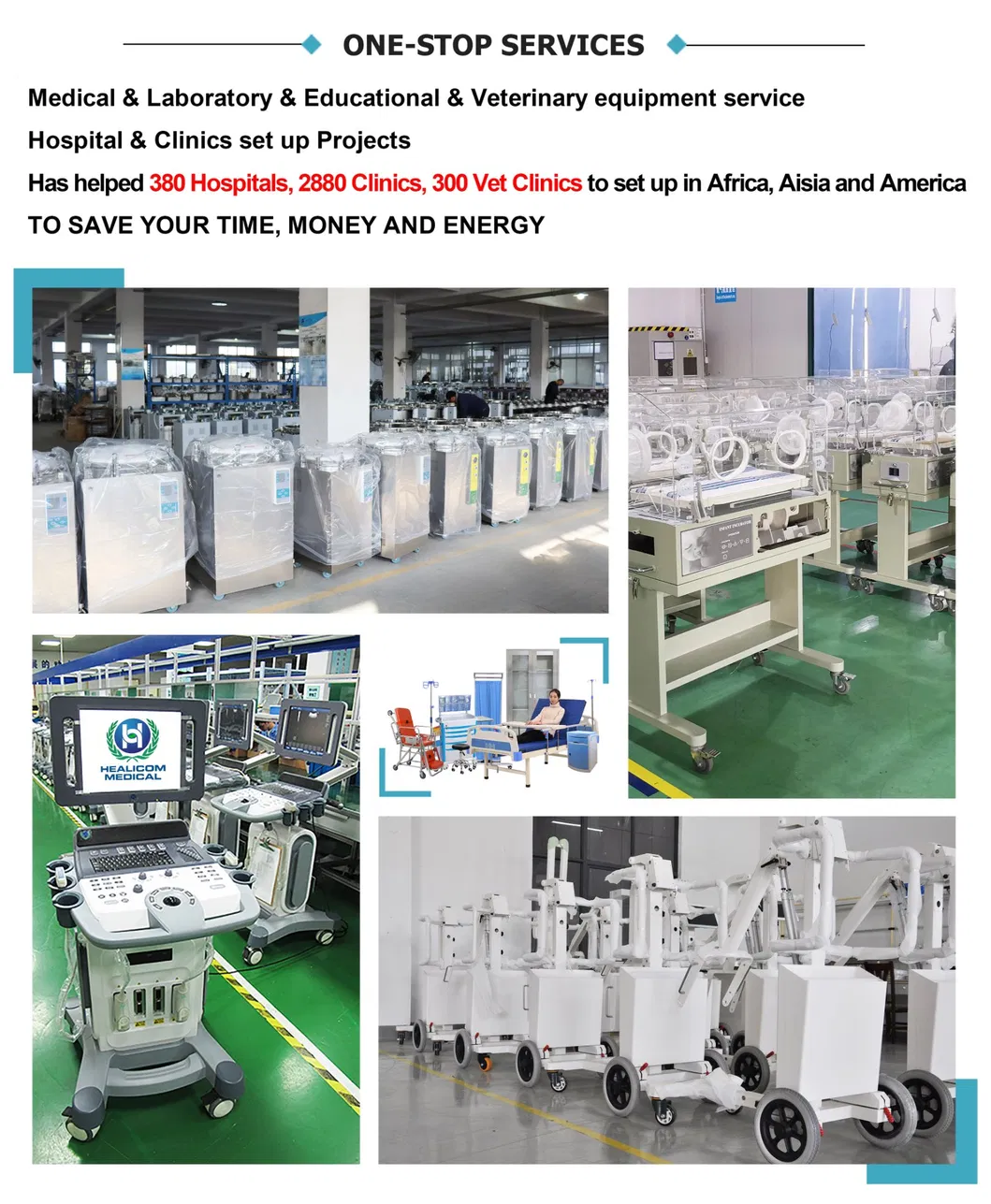

Production 1 Production 2
Testing 1 Testing 2
❓

Frequently Asked Questions

What is the time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. For small or sample orders, please check with us for ready stock availability.
How do you ensure quality assurance?
We offer a one-year warranty period starting from the time of shipment for medical equipment. For minor problems, we provide free spare parts. For serious issues, we offer free replacements.
Is your pricing competitive?
We are confident that our prices are highly competitive within the same quality level. With over 20 years in the field, we adhere to providing top-quality products at cost-effective rates.
What are your payment terms?
We accept various payment methods including T/T in advance, L/C, Western Union, PayPal, and MoneyGram for your convenience.
Which shipping companies do you use?
We work with major lines like MAERSK, COSCO, APL, and CMA, as well as couriers like DHL, EMS, TNT, and UPS. Buyer preference is our priority.
Why do some prices look lower from other suppliers?
Market prices vary based on material quality and quality control standards. We focus on durability and performance using premium components for medical-grade reliability.
