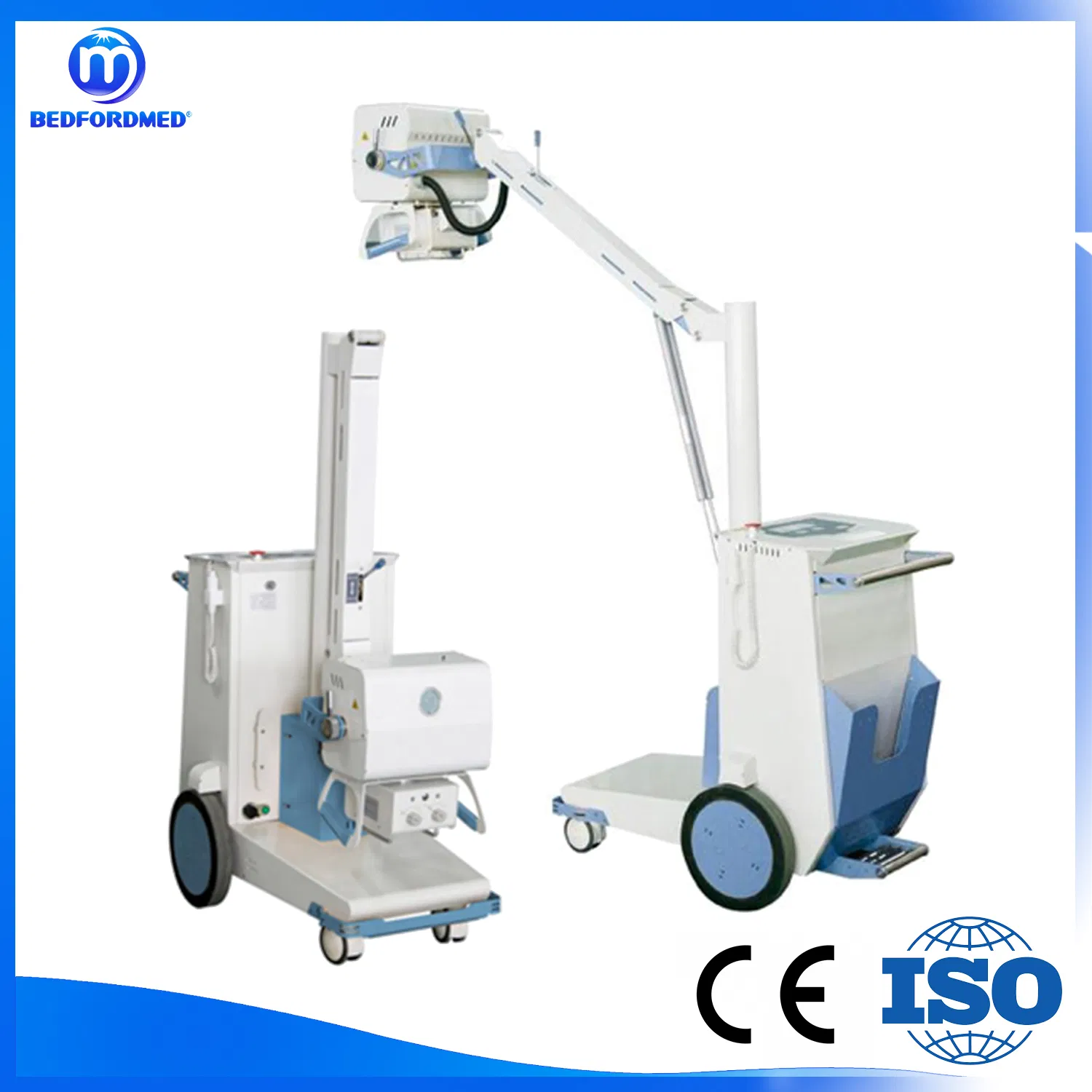

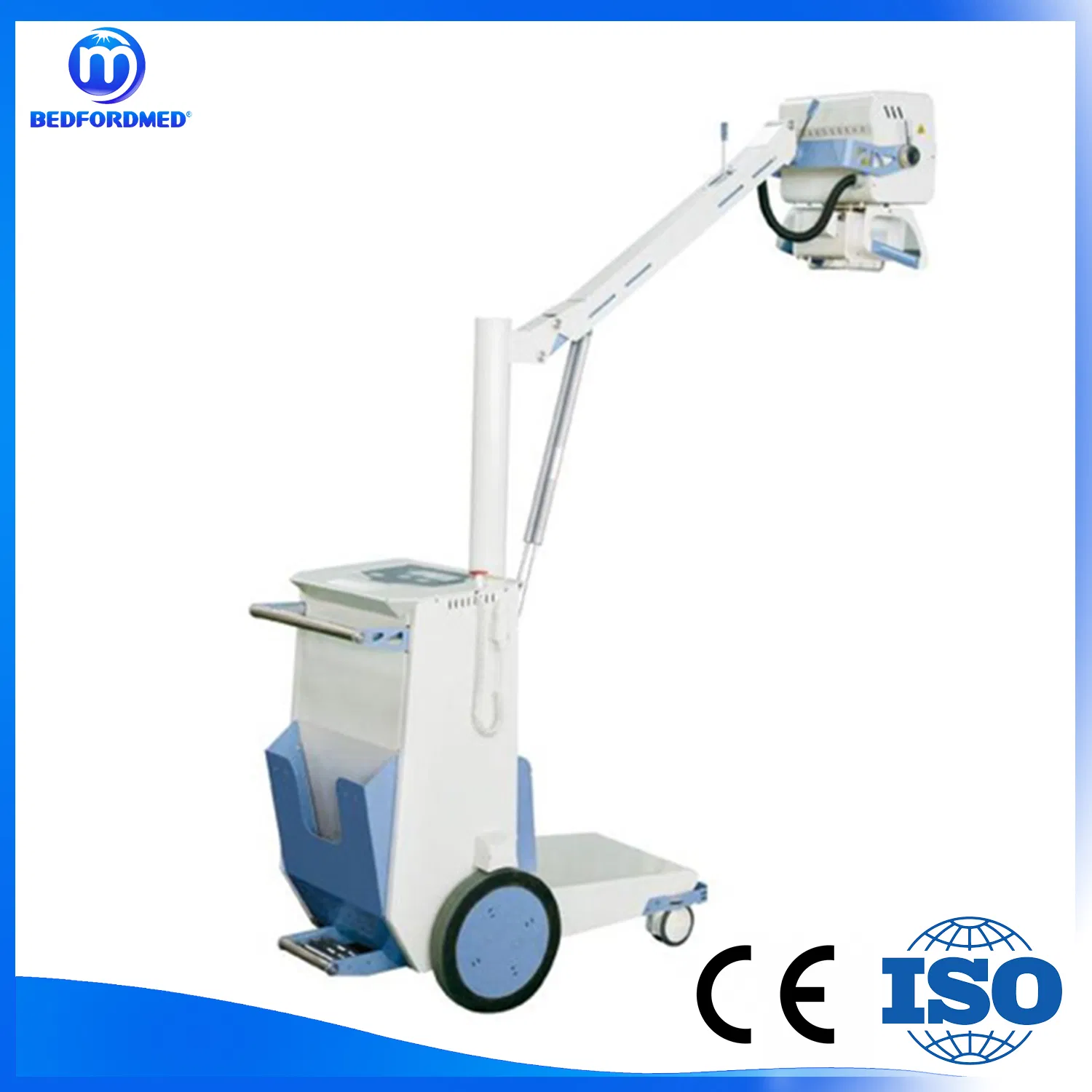

Hospital Emergency Room Operating X-ray Diagnosis Machine
Radiography System ME3410
📊 Basic Information
Certification
CE, ISO13485
🔍 Application
This machine is designed for use in the human body and lateral X-ray photographic film and other diagnostic procedures.
⚙️ Technical Parameters
| 3-phase Power | 380V±38V |
| Power frequency | 50HZ±1HZ |
| Power resistance | ≤0.5Ω |
| Tube current | 16mA-200mA |
| Tube voltage | 40-125KV |
| Standard work frequency | ≥ 30KHZ |
✨ Key Features

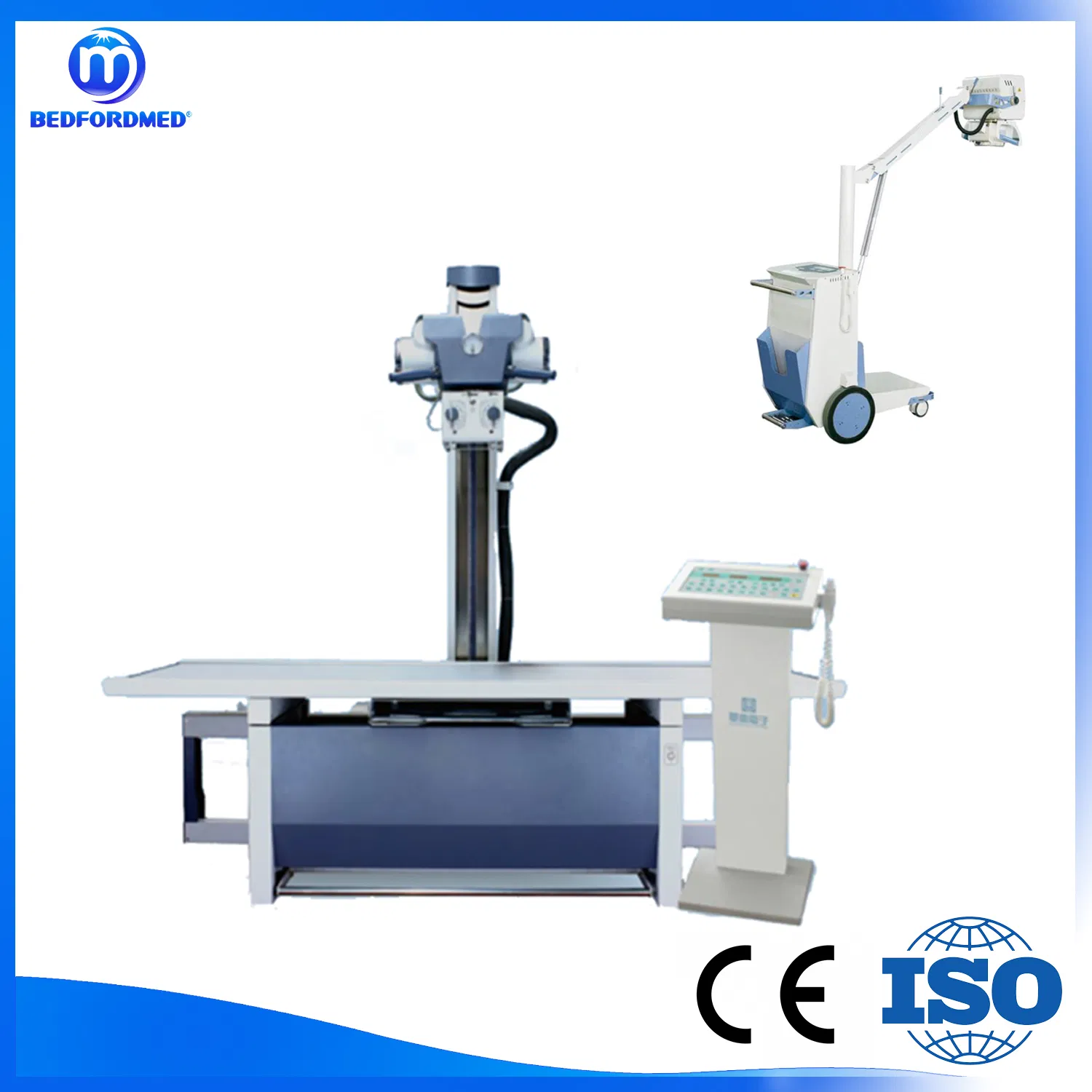

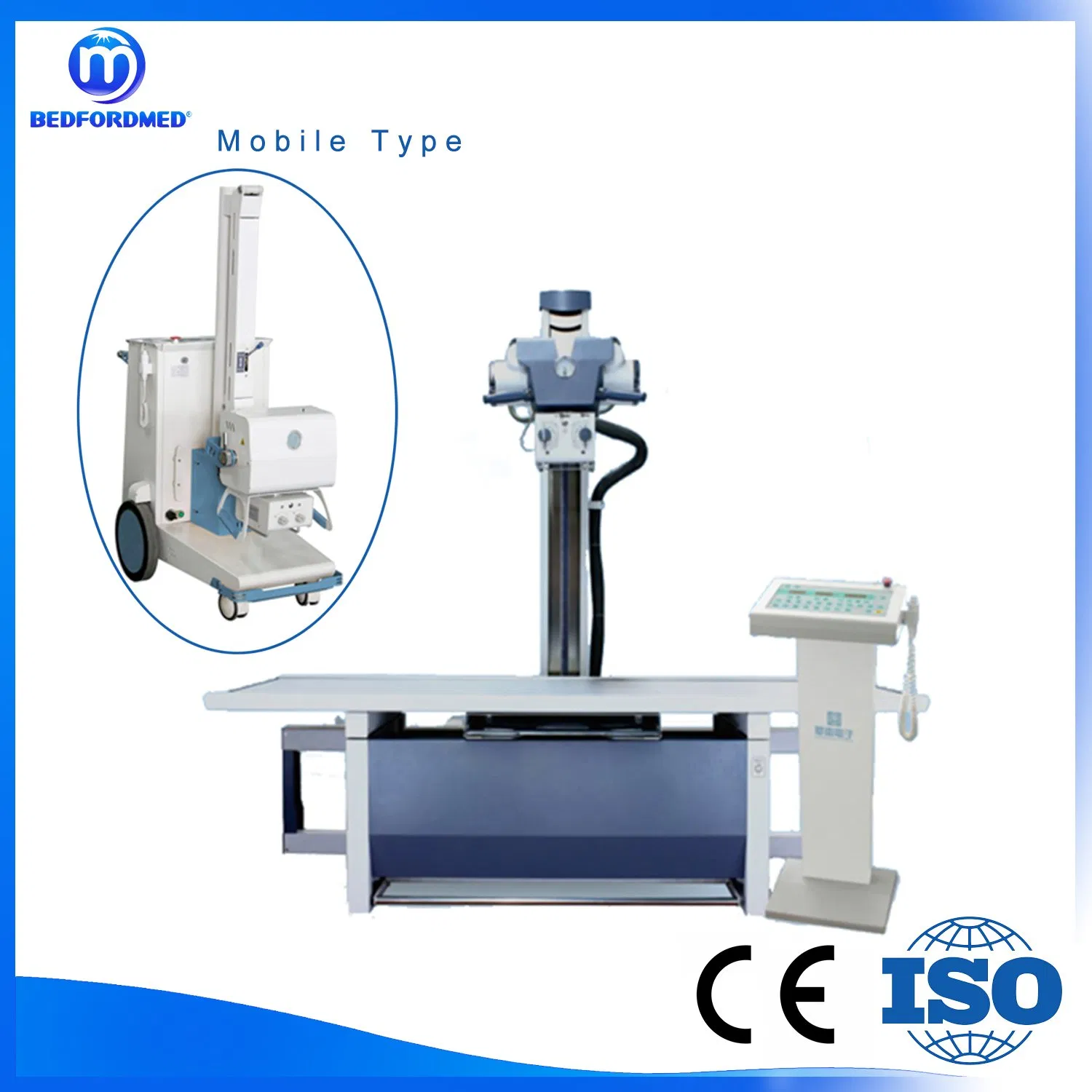

Three-dimensional tube rack with integrated bedpost, suitable for human body and lateral X-ray photographic film.
Computer program control system with KV priority, mA priority, mAs exposure, and multi-position preset modes.
High intelligence with automatic fault detection and error code display for rapid maintenance.
High-frequency inverter technology ensuring stable X-ray output, short exposure time, and low dose irradiation.
Equipped with DR interface to facilitate easy digital upgrades in the future.
PWM voltage regulation and micro-computer CPU closed-loop control for maximum reliability.
📦 Standard Configurations
1. X-ray Generator
2. Radiography Bed
3. Control Console
4. X-ray Tube
🖼️ Product Display
❓ Frequently Asked Questions
What are the available payment methods?
We accept T/T (30% before production, 70% before shipping), L/C at sight, and Western Union.
What are the standard transaction terms?
Our general quotation is EXW. We also provide CFR quotes after confirming quantities and support DDP terms.
What is the estimated delivery time?
For single units, delivery is approximately 5 days after payment. For large orders (e.g., 100 units), it takes about one month.
What is the tube voltage and current range for ME3410?
The system supports a tube voltage of 40-125KV and a tube current ranging from 16mA to 200mA.
Does the system support digital upgrades?
Yes, the ME3410 features a built-in DR interface to facilitate seamless digital upgrades.
What are the power supply requirements?
The system requires a 3-phase power supply of 380V±38V at a frequency of 50Hz±1Hz.
