Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
1 / 5
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit
Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit

Medical Machine Jfy-10b Top Quality Wall Mounted Dental Xray Unit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
JYF-10B
Type
Cleaning & Filling Teeth Equipments
Material
Metal
Tube Voltage
60kv
Color
Blue, Green, Grey or Custom
Tube Current
8mA
Package
Hard Paper Carton
Specification
CE
Origin
China
HS Code
90184990

Moving Type Digital Dental X-ray Unit

🔵
The microprocessor-controlled timer brings high-tech X-ray imaging at your fingertips.
🔵
The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations.
🔵
Fitted with 70kv 8ma tube with preheating grid, the machine has been specially designed for intra-oral dental diagnosis applications.
🔵
Complies with local and international regulations on ionizing radiation protection for maximum safety.
🔵
The soft positioner arm ensures naturally smooth and well-balanced movements. It is easy installed at the height and length.
🔵
Its ergonomics and design have been studied to meet the requirements of floor space optimization.

Technical Specifications

Parameter Details
Power Supply AC220V±10%, 50HZ, 1kVA
Tube Voltage 60kVP
Tube Current 8mA
Focus Size 1.5mm
Total Filtration 2.5mmAL
Exposure Time 0.2-4S
Leak Radiation Outside one meter ≤0.002mGy/h (National standard: 0.25mGy/h)
Optional Config Tube current 0.5mA, Focus size 0.8mm

Product Display

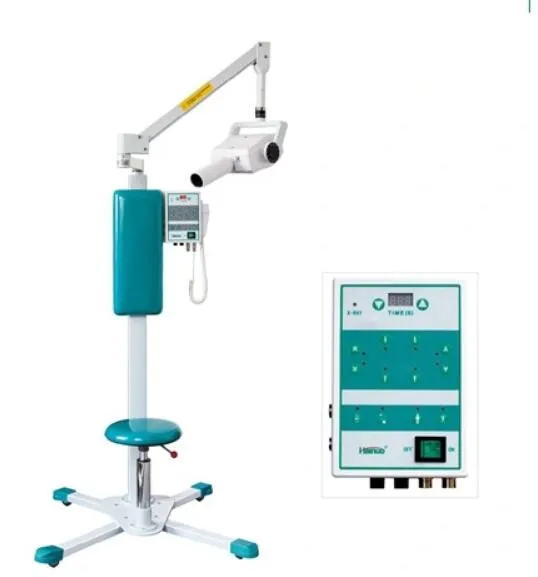

Digital Dental X-ray Unit View 1

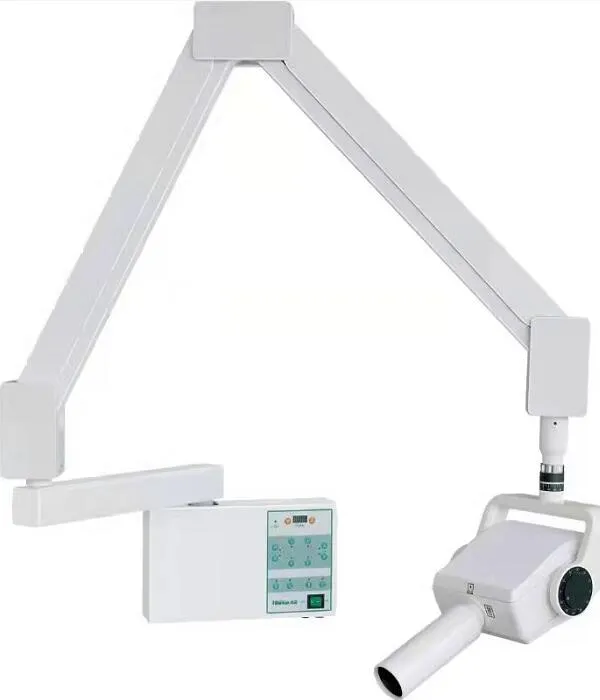

Digital Dental X-ray Unit View 2
Digital Dental X-ray Unit View 3

Frequently Asked Questions

❓ What is the primary use of the JYF-10B X-ray unit?
The unit is specifically designed for intra-oral dental diagnosis applications, utilizing high-tech imaging for accurate results.
❓ How is the radiation safety managed on this device?
It complies with both local and international regulations on ionizing radiation protection. The leak radiation at one meter is ≤0.002mGy/h, which is significantly lower than the national standard of 0.25mGy/h.
❓ Can the exposure time be adjusted?
Yes, the microprocessor-controlled timer allows for an accurate exposure time selection ranging from 0.2 to 4 seconds.
❓ What are the power requirements for installation?
The machine requires a power supply of AC220V±10% at 50HZ, with a power capacity of 1kVA.
❓ Is the positioning arm easy to move?
Yes, the unit features a soft positioner arm that ensures naturally smooth and well-balanced movements for easy height and length installation.
❓ What material is the unit made of?
The unit is constructed from high-quality metal, ensuring durability and stability during medical dental procedures.
