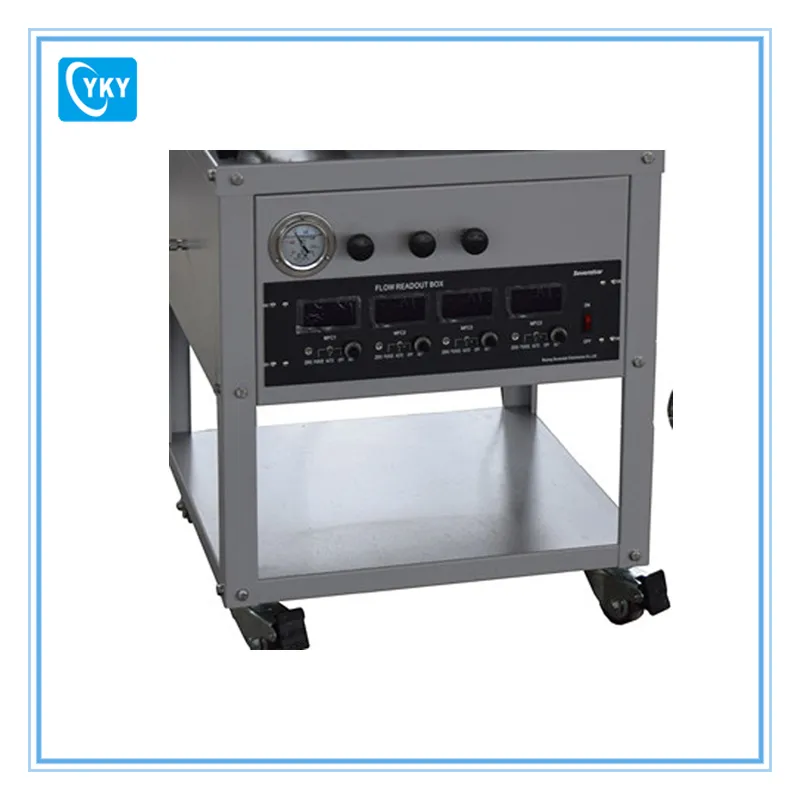

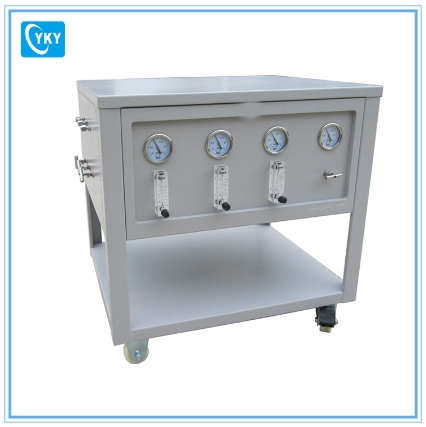

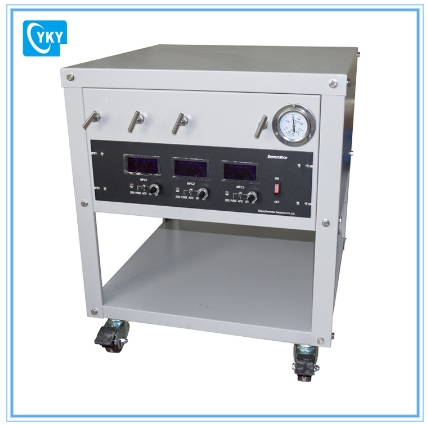

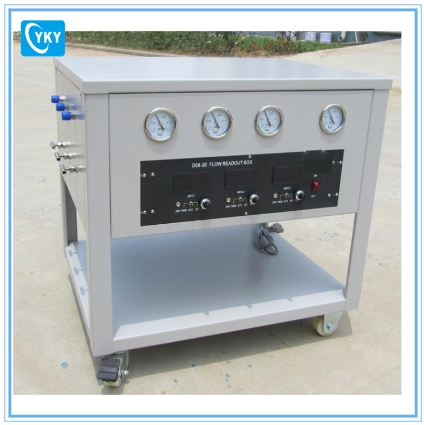

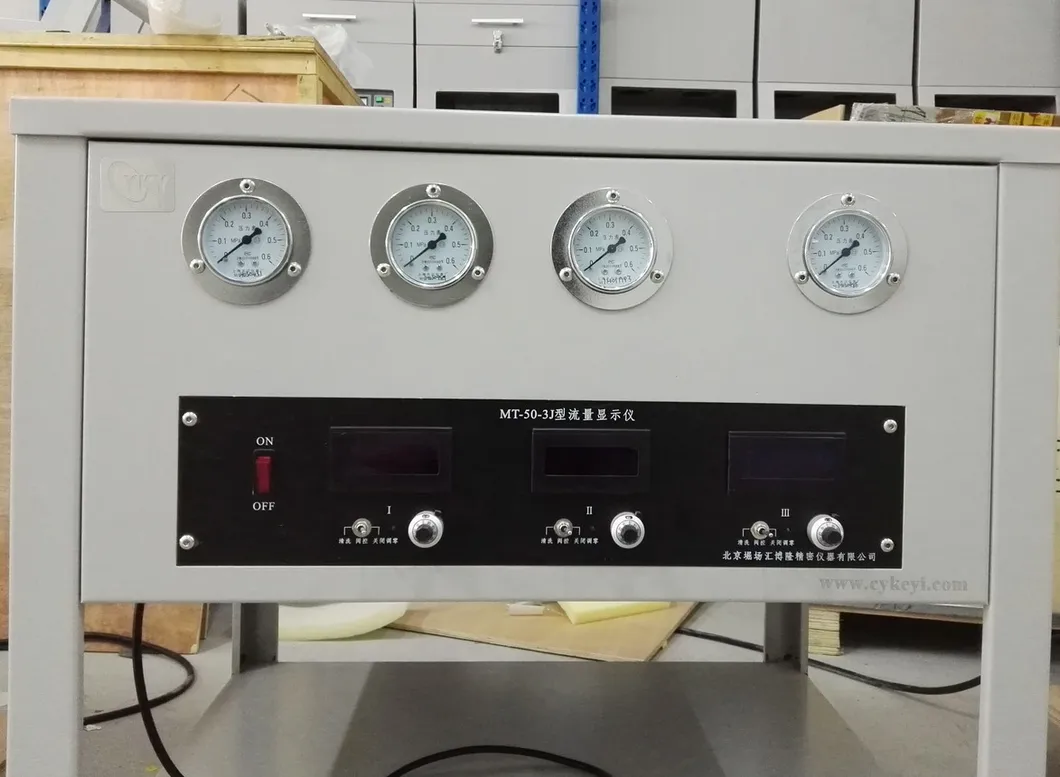

The gas control system is designed for the control of 1-4 types of gases flowing through vacuum-sealed tube furnaces at a low cost. The gas control system is installed in a heavy-duty mobile cart where the tube furnace can be placed on the top. The front panel in the system has adjust valves and displays for the flow rate of gases. By combining with tube furnaces, it can be used as CVD system and annealing furnace to study the gas environmental influence has on materials.
| Function | Two Channels | Three Channels | Four Channels |
|---|---|---|---|
| Mass Flow Controller | Voltage: 185~245V 50/60Hz Max Power: 18W Temp: 5~45C Max Pressure: 3x106 Pa Accuracy: ±1% FS Range: 1~500 SCCM |
Voltage: 185~245V 50/60Hz Max Power: 18W Temp: 5~45C Max Pressure: 3x106 Pa Accuracy: ±1% FS Range: 0~500 SCCM |
Voltage: 185~245V 50/60Hz Max Power: 18W Temp: 5~45C Max Pressure: 3x106 Pa Accuracy: ±1% FS Range: 0~500 SCCM |
| Removability | 4 heavy duty wheels included; Max load: 500 Lbs | ||
| Pressure Gauge | Measurement Range: -0.1~0.15 MPa (0.01 MPa/grid) | ||
| Valves & Fittings | 316 Stainless Steel Needle Valve; 1/4" stainless steel pipe fitting; 12'' length 1/4" ID Nylon pipe | ||
| Gas Mixing Tank | Φ80X120mm | ||
| Warranty | One year limited with lifetime support | ||
