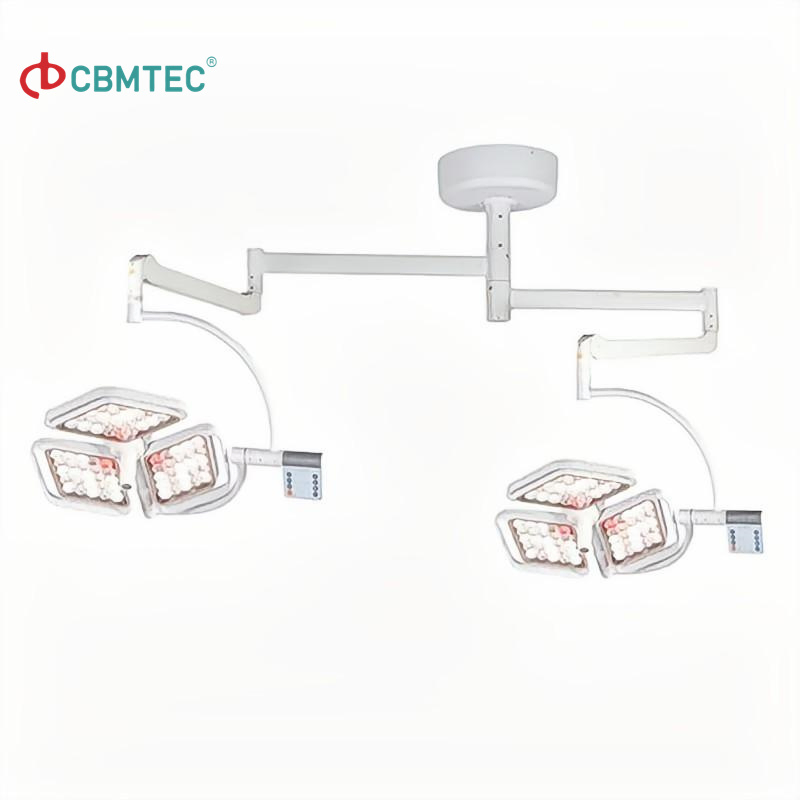

Stand Surgery Veterinary Ot Dental Scialitic LED Shadowless Medical Surgical Operating Room Lamp Light for Operations

Customization: Available
Classification: Operation Illuminating Lamps
Certification: CE, FDA, ISO13485

Product Description

Basic Information
Model Number
Zw-K700/500(H)
Material
Acrylic, Plastic
Power Source
Electric
Shelf Life
3 Years
Classification
Class II
Illuminance
160000/140000lux
Transport Package
Wooden Box
Trademark
CBMTEC

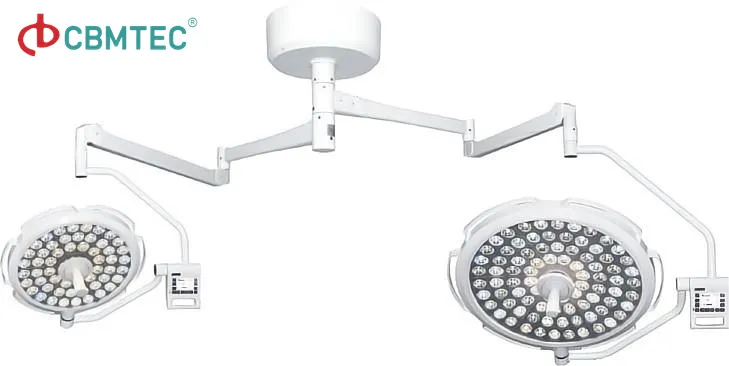

G Series Surgical Light
G Series Surgical Light
Product Features
  • Optical PMMA Lens, Innovative Lighting Collecting Technology, Excellent Light Efficiency.
  • German Osram LED with Average Lifespan over 50,000 hrs.
  • PWM Dimming System, Color Temperature Flexibly Adjustable.
  • Engineering plastics outer cover with aerospace-grade aluminum top, 360° circle handle.

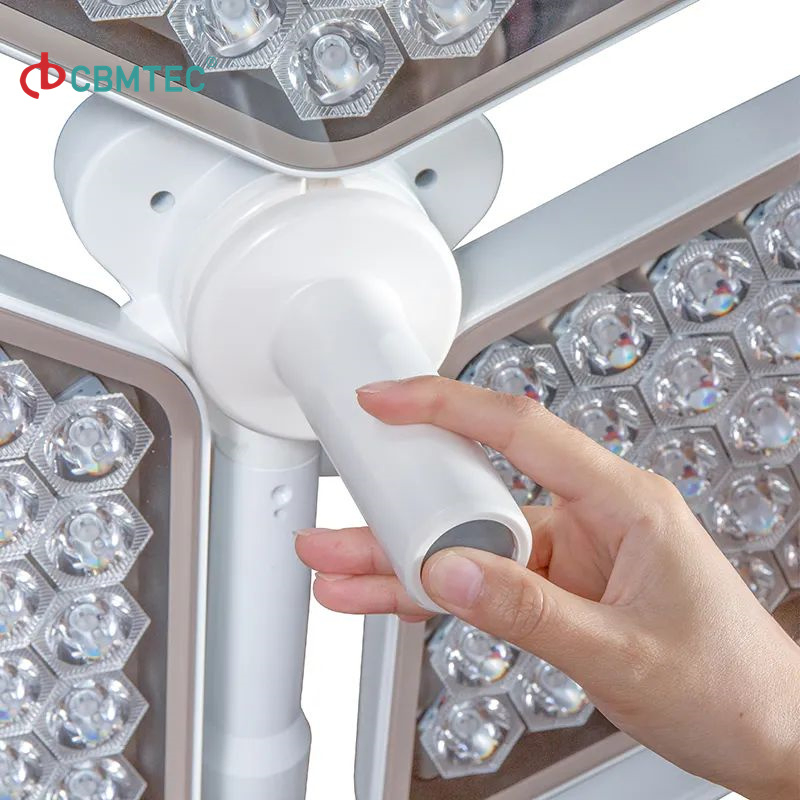

  • Buckle type plugin detachable sterilized handle, easy to clean.
  • Ultra-slim Streamline Design (700 Dome thickness only 100mm).

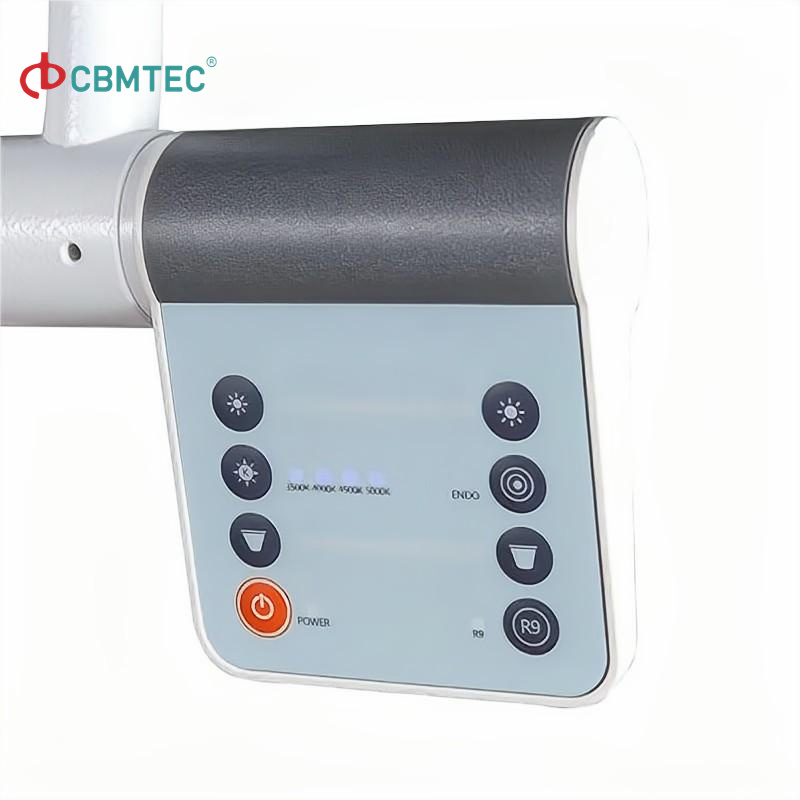

  • One button to change lighting mode: Standard, endoscope, low light lighting.

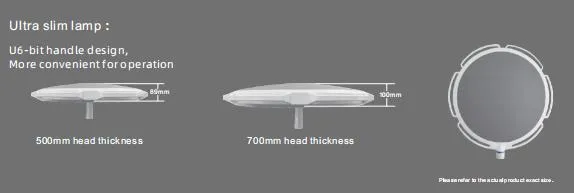

G Series Dimensions
Model 700 Lamp Head 500 Lamp Head
VoltageAC 100-240V 50-60Hz
Illumination40000 - 160000 Lx40000 - 120000 Lx
Color Temperature4000-5000K (Adjustable)
Spot Diameter180-280mm
Lighting Depth≥ 950mm≥ 1100mm
LED Bulb Life≥ 50,000h
LED Bulb Number84 pcs54 pcs

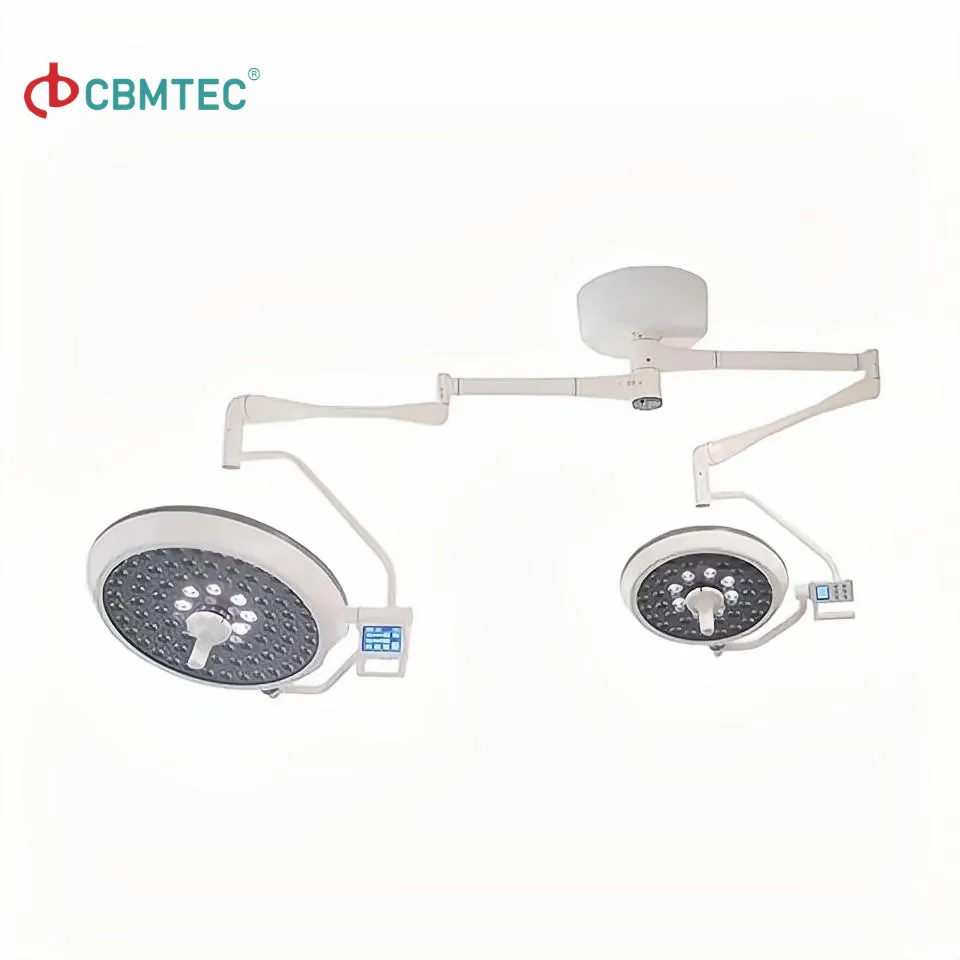

D Series Surgical Light
D Series Surgical Light
Product Features
  • Simple and clear operating system.
  • PWM Dimming System, Color Temperature Flexibly Adjustable.
  • German Osram LED, high light efficiency, average lifespan over 50,000 hrs.
  • Optical PMMA Lens, aluminum board heat dissipation.
  • One button lighting mode switching (Standard, Endoscope, Low light).

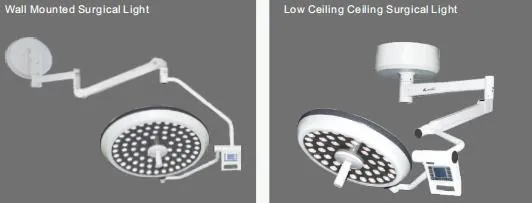

D Series Detail
Model 700 Lamp Head 500 Lamp Head
Illumination40000 - 160000 Lx40000 - 120000 Lx
Spot Diameter120-260mm120-280mm
LED Bulb Number80 pcs48 pcs
Entire Reflective LED Surgical Light
Product Features
  • Using polyoptic reflector, unique light collecting technology.
  • Cast aluminum bracket + aluminum board for superior heat dissipation.
  • Constant Current Drive for stable operation and long usage life.
  • Excellent shadowless effect with low energy consumption.

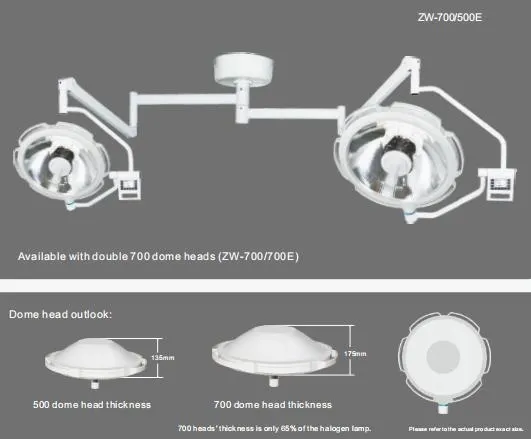

Reflective LED Light
Product Details & Logistics

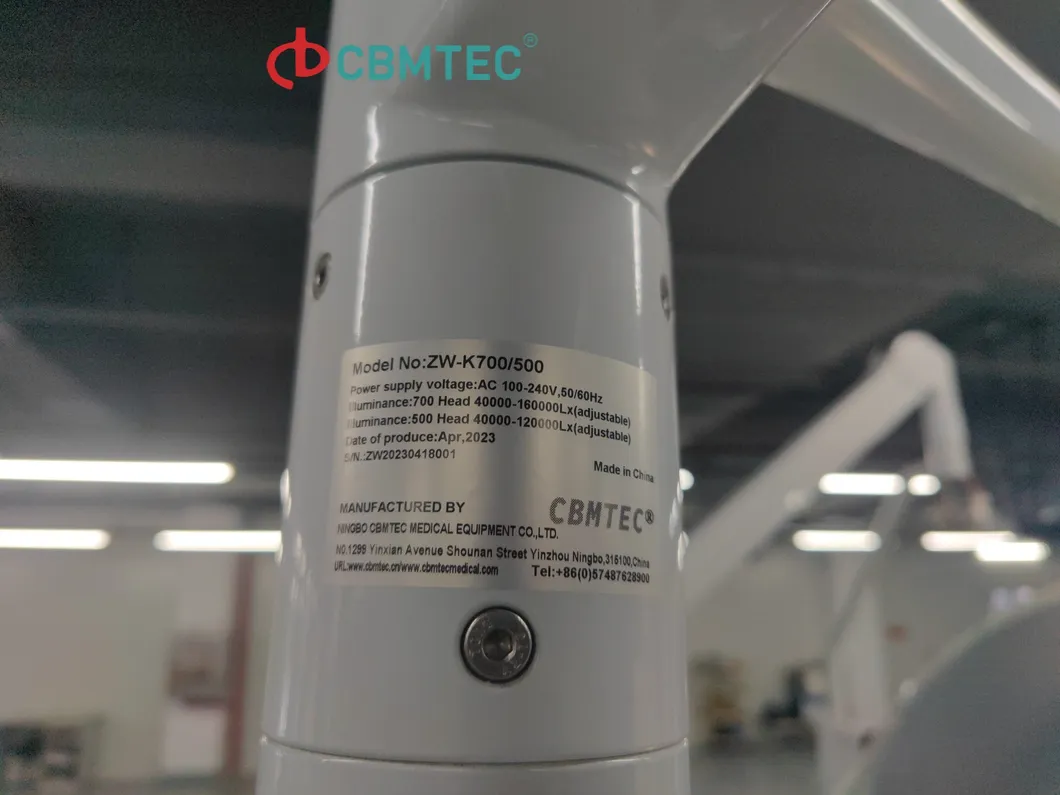

Detail 1

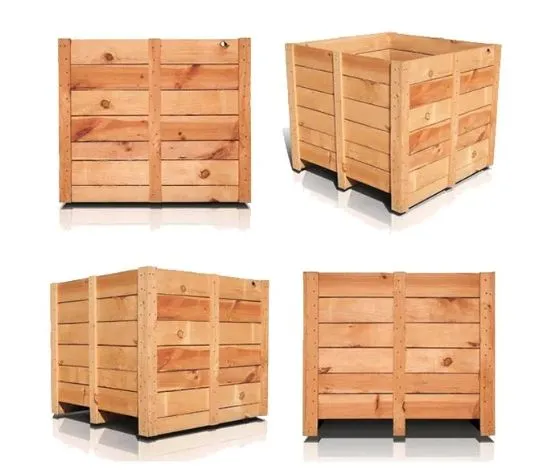

Detail 2
Shipping

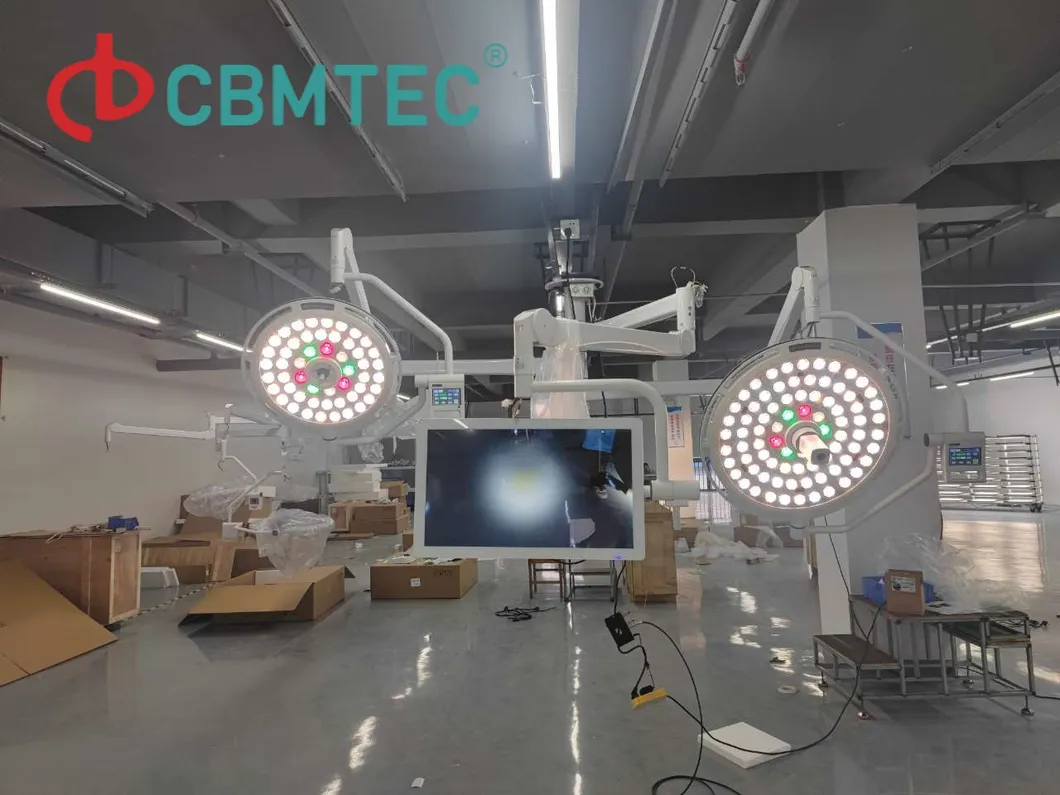

Warehouse
Our Services
  • Support customization based on your special request.
  • OEM services available for global partners.
  • Special LOGO printing and branding options.
  • Efficient shipping within 5-7 days after payment (Fedex, DHL, TNT, EMS, UPS, etc.).
Services and Support
Frequently Asked Questions
1. What is the average lifespan of the LED bulbs used?
The surgical lights utilize high-quality German Osram LEDs with an average lifespan exceeding 50,000 hours, ensuring long-term reliability and minimal maintenance.
2. Is the color temperature adjustable for different surgical needs?
Yes, the PWM dimming system allows the color temperature to be flexibly adjusted between 4000K and 5000K to provide optimal visualization for various procedures.
3. Can the handle be sterilized?
The lights feature a buckle-type plugin detachable sterilized handle, which is specifically designed for easy removal, cleaning, and autoclaving to maintain a sterile environment.
4. What lighting modes are supported?
Our surgical lights offer one-button switching between Standard mode, Endoscope mode, and Low Light lighting to suit different operative requirements.
5. Do you offer customization or OEM services?
Yes, we support full customization based on specific client requests, including OEM manufacturing and specialized logo printing for medical institutions and distributors.
6. What are the shipping options and delivery times?
Typically, orders are processed and shipped within 5-7 days after payment. We work with major international couriers including FedEx, DHL, TNT, and UPS to ensure safe and timely delivery.
