Wall-Mounted Dental X-ray Unit Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TY-011

Type

X-Ray Equipment

Material

Metal

Focus Point

0.3mm

Tube Current

0.2mA

Tubing Voltage

60kv(Fixed)

Frequency

30Hz

Angle

21°

Receive Distance

>20cm (Fixed by Cone)

Leakage Radiation

<20ugy/H

Trademark

TOYE

HS Code

9022130000

★

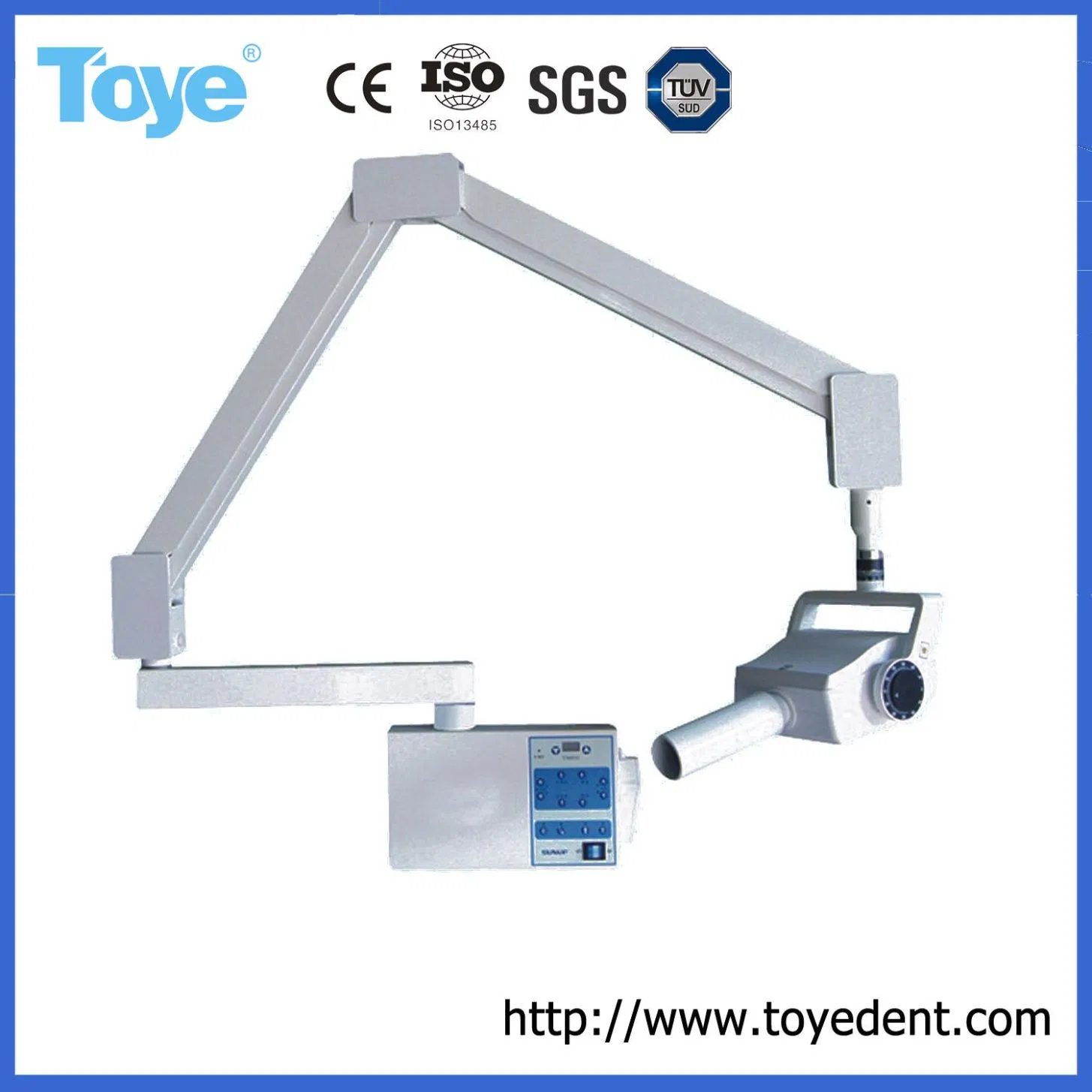

Wall-Mounted Dental X-ray Unit

✔

Advanced Technology: Adopted imported assembled X-ray generator for superior stability.

✔

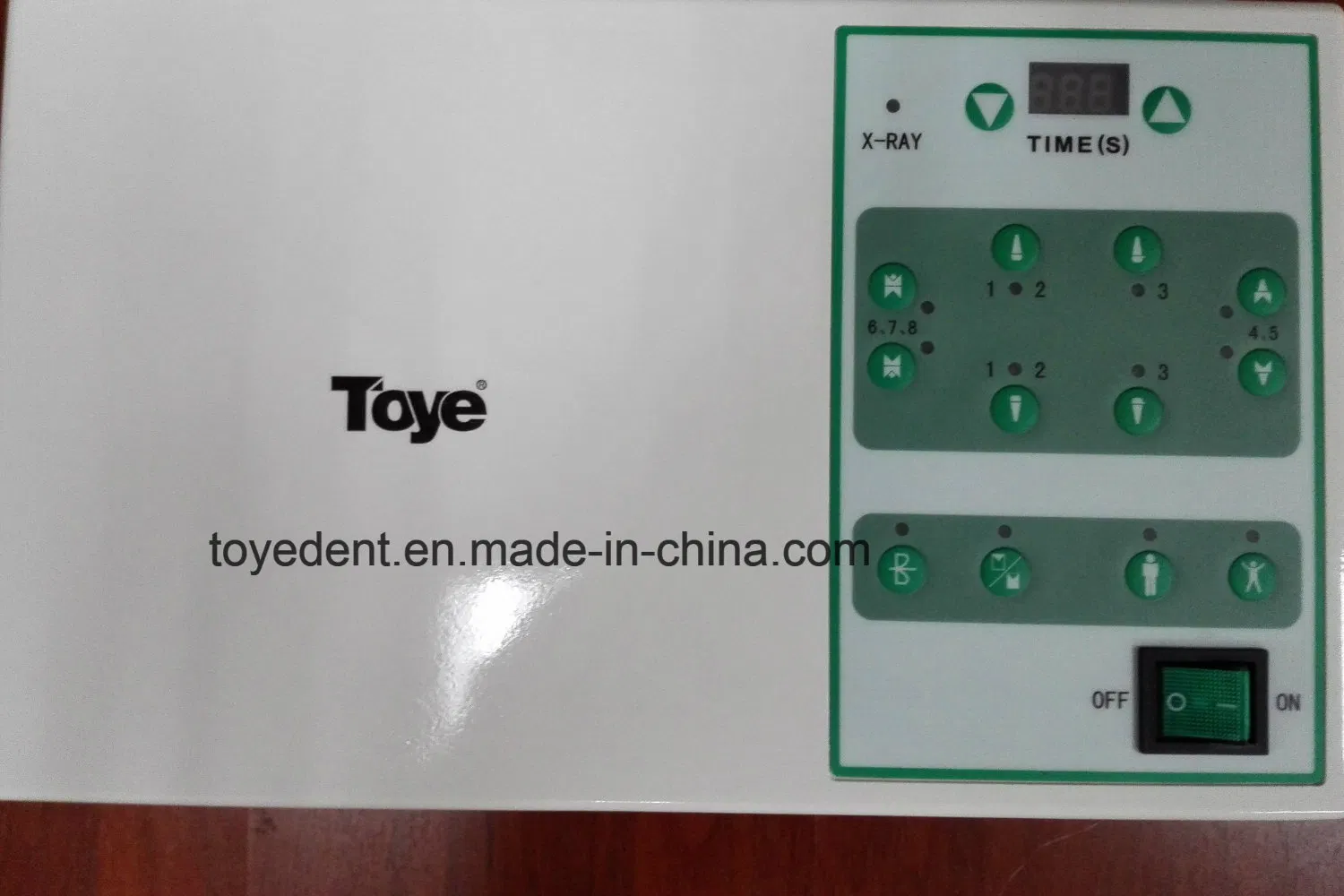

Precise Digital Control: Microprocessing ensures exposure time accuracy to 1/100 second with real-time digital display.

✔

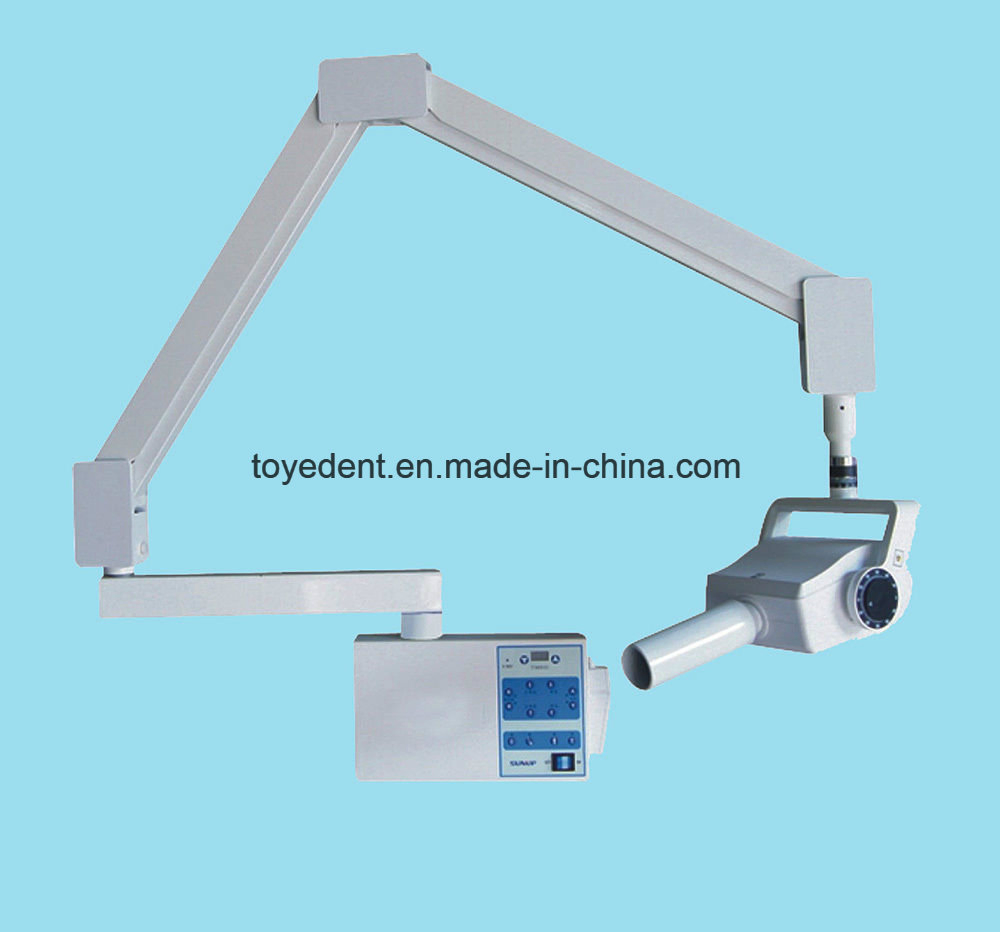

Flexible Positioning: Equipped with an imported balance arm for flexible and stable movement.

✔

Safety First: Tiny X-ray source and tightly sealed ball sleeve result in leakage radiation 68 times lower than national standards.

✔

Durable Design: Aluminium alloy column with a standard voltage stabilizer to prevent damage from power fluctuations.

⚙

Technical Parameters

Voltage Options	220V/50Hz±10% or 110V/60Hz±10%
Max Power Consumption	900 VA
Electric Current	4A
Focus Size	0.8 mm
Tube Voltage	70KV ±10%
Anodic Angle	19º
Leaking Radiation Rate	1m < 0.007mGy/h
Exposure Time	0.06 - 2.00S
Net Weight	40KG

Product Details & QC

The unit features the smallest focus (0.8mm) in the tube-head, which significantly increases image clarity while reducing the X-ray dose by 16-20 times compared to standard market products. The head window utilizes 1.5mm aluminum filtration to prioritize the health of both patients and medical staff.

Quality Control (QC): 100% inspection and random checks on all parts and machines are performed to ensure high-quality standards for every unit.

Package: 1PCS per Carton
Transportation: Available via air, sea, or express delivery.

Frequently Asked Questions

How accurate is the exposure time control?

The machine uses microprocessing technology to achieve exposure time accuracy of up to 1/100 of a second, displayed digitally.

Is this X-ray machine safe for use without a lead-shielded room?

Yes. Due to the tiny X-ray source and sealed sleeve, radiation leakage is significantly below safety standards (0.007mGy/h at 1 meter), offering excellent protection for doctors and patients.

What is the advantage of the 0.8mm focus?

A smaller focus (0.8mm) produces much clearer, sharper images while simultaneously reducing the required X-ray dose.

Can this machine be upgraded to a digital system?

Yes, it features a reserved digital camera mode, allowing it to be upgraded to a digital developing machine in the future.

Does the machine come with a voltage stabilizer?

Yes, a voltage stabilizer is included as standard collocation to protect the device from voltage hunting and extend its service life.
