Wall Mounted Dental X Ray Unit with CE

i

Basic Specifications

Model NO.

VKD-X02

Material

Iron

Transport Package

Hard Paper Carton

Specification

CE

Trademark

vokodak

Origin

China

HS Code

901849000

Production Capacity

20PCS /Day

★

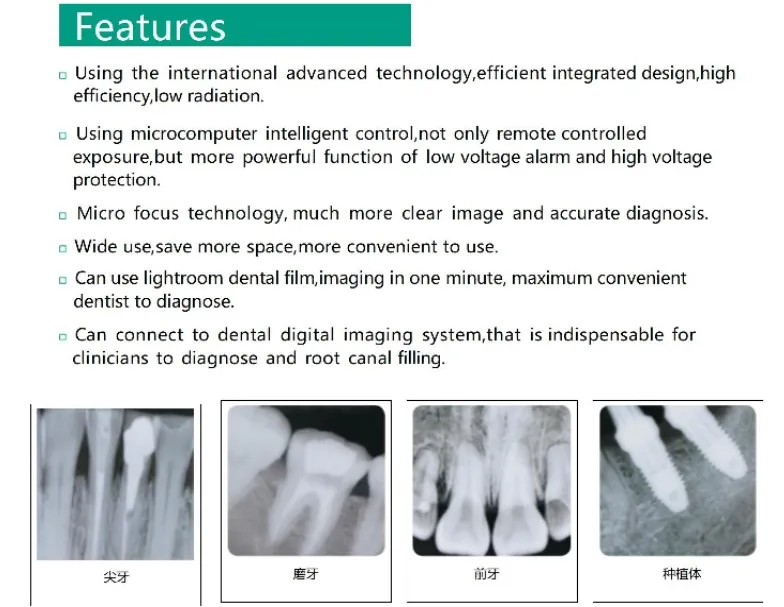

Key Features

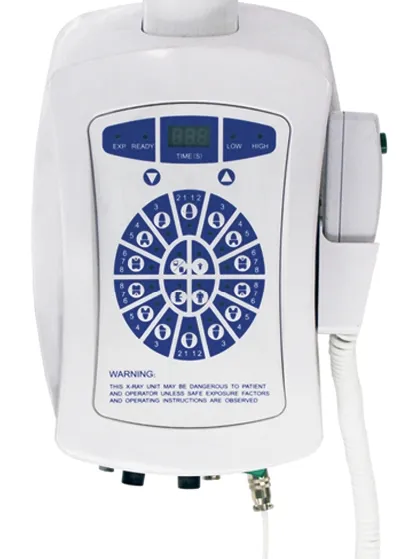

Three kinds of KV adjustments satisfy different requirements with easy operation.

Equipped with a micro-processor for reasonable setting according to specific situations.

Long-distance non-line and directional remote control for convenient use.

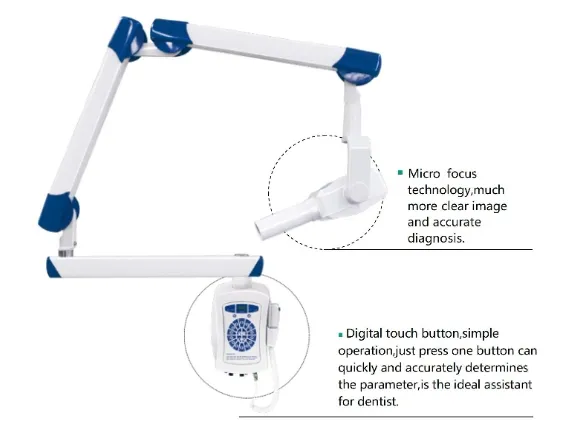

Intelligence control ensures high-detail imaging for the micro-focus X-RAY tube.

Lower radiation leakage design for enhanced safety during operation.

⚙

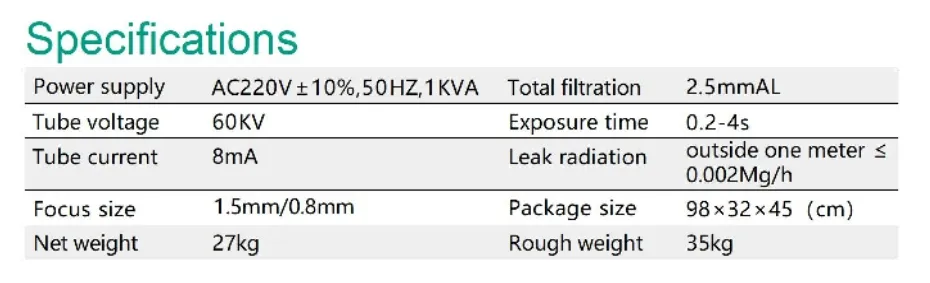

Technical Data

Power Supply	220V/50HZ, 110V/60HZ
X-Ray Tube Voltage/Current	60kv-0.5MA \| 65kv-0.85MA \| 70kv-1.10MA
Setting Time Range	0.01 - 2.00s
X-Ray Spot Size	0.3 x 0.3mm²
Radiation Leakage	< 0.002mgy/h (Standard stipulated is 0.25mgy/h)
Total Filtration Value	1.5mmAL
Focal Distance	200mm

📷

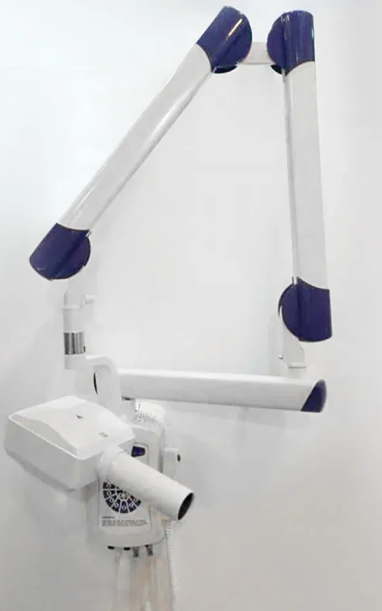

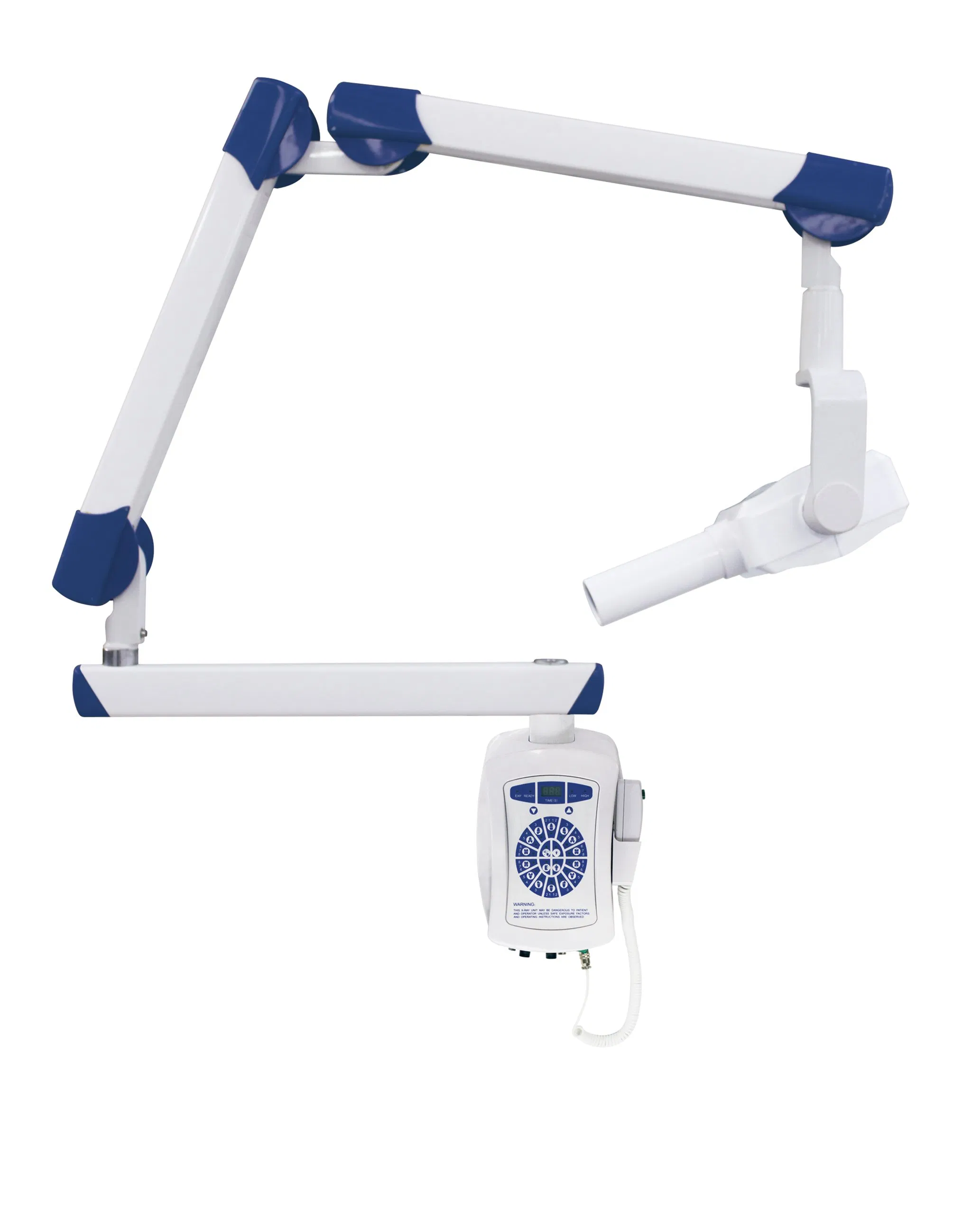

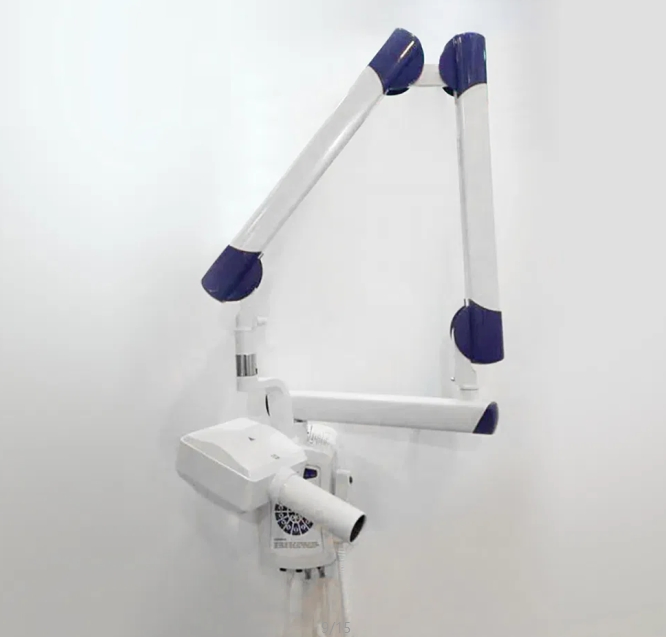

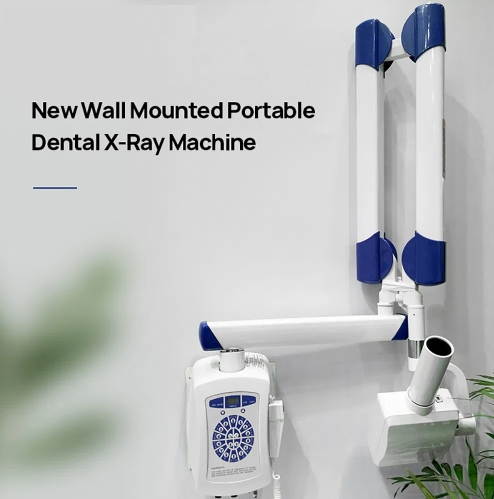

Product Display

📦

Packing Information

Portable X-ray Machine Arm: 149 X 38 X 27 CM | Weight: 40 KG

Portable X-ray Machine Head: 69 X 67 X 18 CM | Weight: 20 KG

FAQ

Frequently Asked Questions

What are the available voltage settings for this X-ray unit?

The unit features three adjustable KV settings to satisfy different clinical requirements: 60kv (0.5MA), 65kv (0.85MA), and 70kv (1.10MA).

Is this dental X-ray unit safe for daily use?

Yes, safety is a priority. The unit has a radiation leakage of less than 0.002mgy/h, which is significantly lower than the standard stipulated limit of 0.25mgy/h.

What is the focal spot size of the X-ray tube?

The unit utilizes a micro-focus X-ray tube with a focal spot size of 0.3 x 0.3mm², ensuring high-quality image details.

Can I operate the device remotely?

Yes, the device includes a long-distance remote control that works without needing a direct line of sight, providing great convenience for the operator.

What certifications does the VKD-X02 model hold?

The product is CE certified, meeting the necessary European safety and quality standards for medical equipment.

What is the time range for exposure settings?

The exposure setting time range is highly adjustable, from 0.01 seconds to 2.00 seconds, allowing for precise control.
