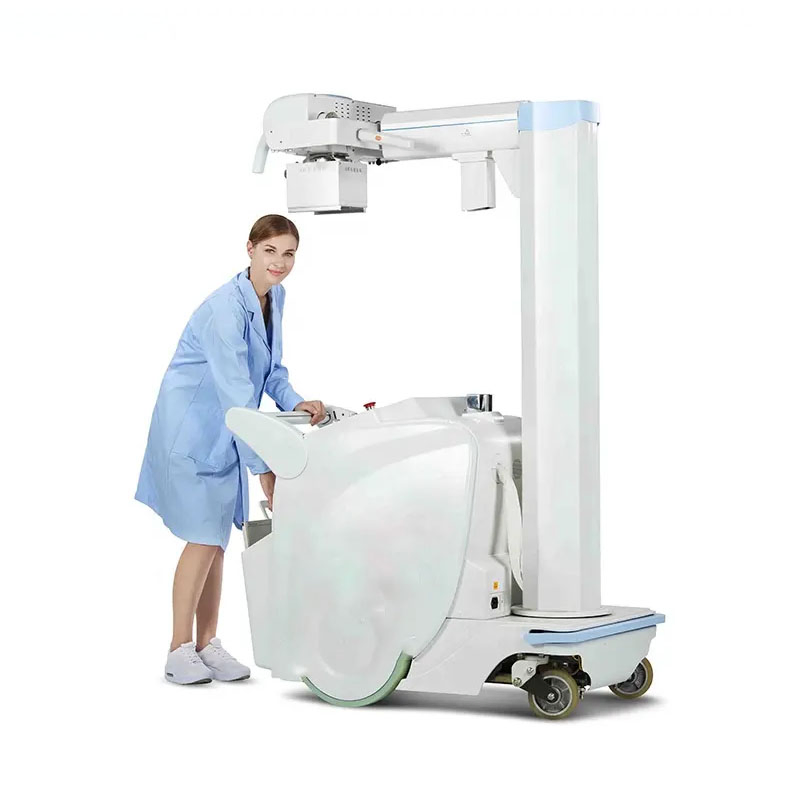

Wholesale Price High Frequency Digital X-ray Radiography System for Medical Diagnosis

Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Certification: CE, ISO13485

Product Description

Basic Information
Model NO.
XY09
Group
Middle-aged and Old
Material
Metal, Steel
Power Source
Electric
Shelf Life
3 Years
Name
Digital X-ray Machine
Output Power
20kw
Power Voltage
380V±38V/220V±22V
Anode Heat Storage
140khu
Small Focus
1.0
Light Source
LED
HS Code
9018390
Product Description

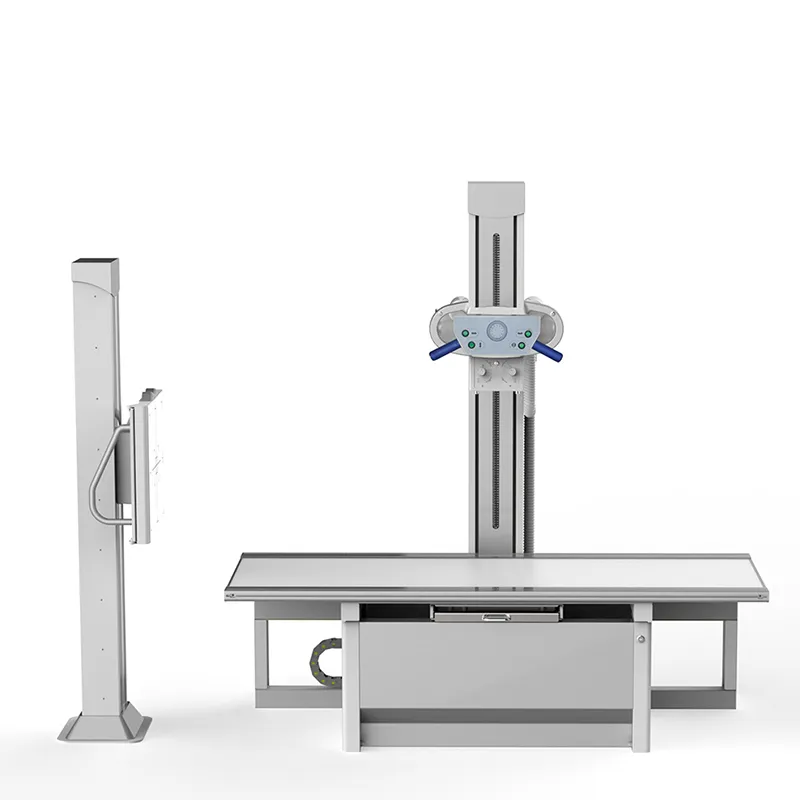

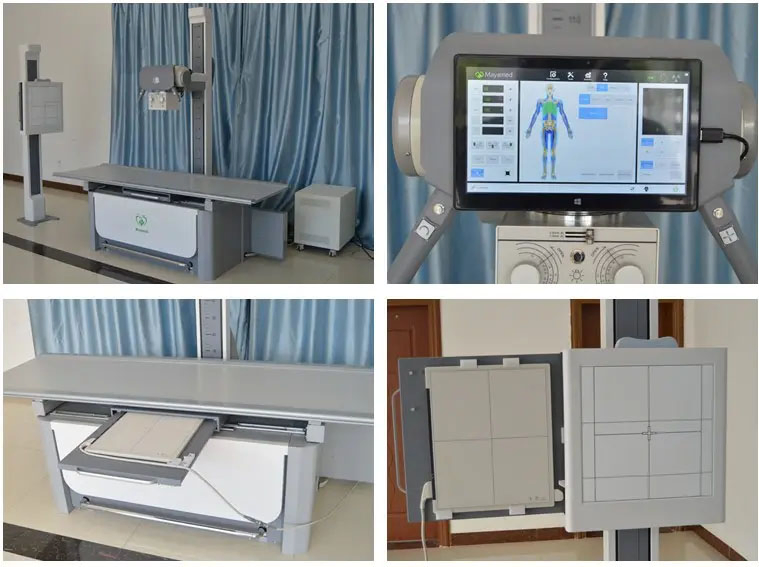

Digital X-ray System

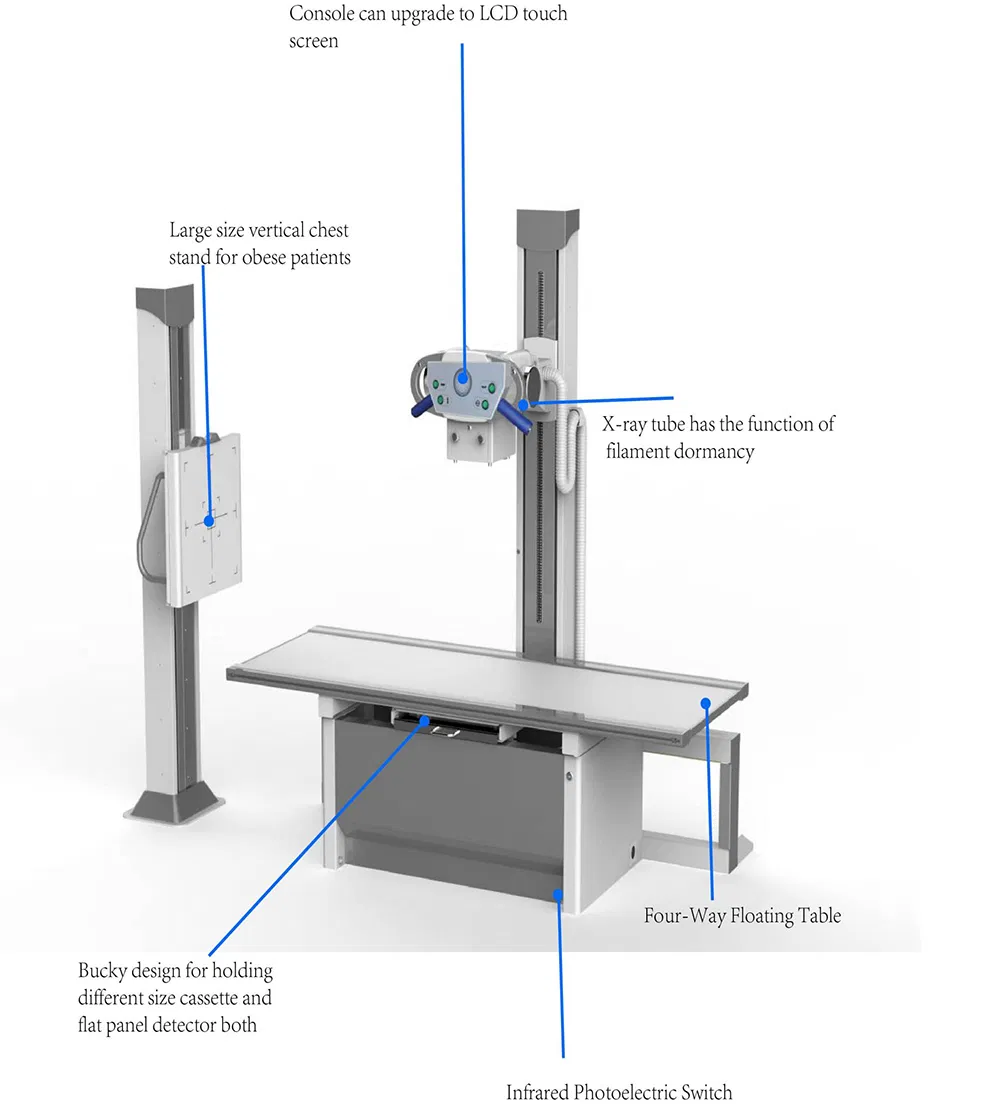

X-ray Radiography
  • X-ray generator with rich DR upgrade reserve interface
  • Fault self-diagnosis and protection systems
  • Automatic calibration of tube current
  • X-ray tube featuring filament dormancy function
  • AEC function, different ionization chamber as optional
  • Analog - digital double - loop control, simple operation, high intelligence
  • High kV, high current, high power, strong penetration for various patient types

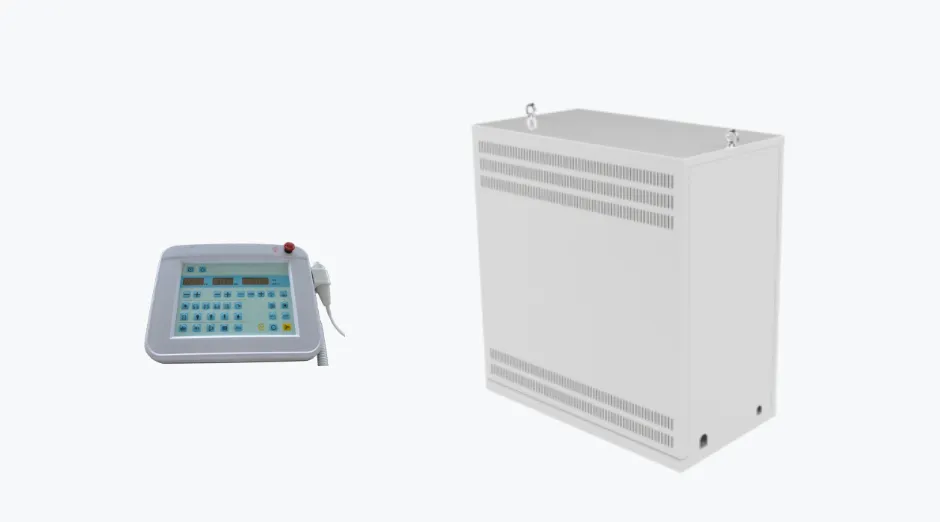

Digital Control

Application Areas:

Applicable to orthopedics, emergency room, operating room, etc., for medical diagnosis of human head, limbs, chest, spine, and lumbar spine.

Clinical Application
Product Parameters
Main Component Technical Specifications Value
X-ray generator Output Power 20KW
kV range 40~125kV
mA range 10~200mA
Exposure time 0.002~6.3S
X-ray tube Anode Heat Storage Capacity 140kHU
Small focus / Large focus 1.0 / 2.0
Anode speed 2700r/min
Radiographic Table Top Table Size 2100X800X650mm
Table longitudinal movement ≥900mm
Vertical Chest stand Vertical moving range ≥1200mm
