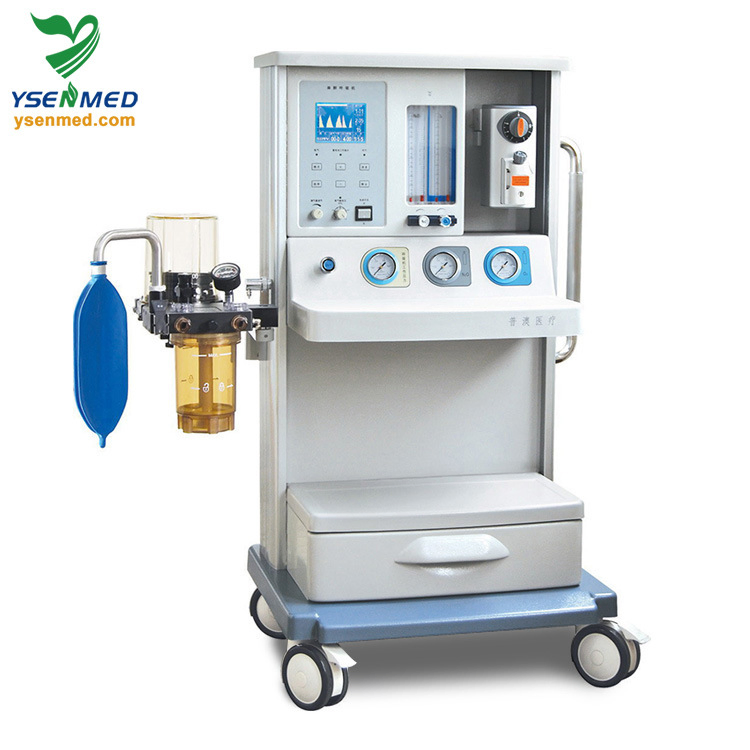

Ysav01b1 Hospital Instrument Anesthesia Machine Medical Equipment

Product Name:	Anesthesia Machine
MOQ:	1 Set
Feature:	Anesthetic Equipment

Send Inquiry

Product Description

🟦 Basic Info.

Model NO.

YSAV01B1

Display

5.4” LCD Display Screen

Advantage

Durable

Package

Standard

Flowmeters

4-Tube Flowmeters

Oxygen Flush

25~75 L/Min

Tidal Volume

0~1500 Ml

Respiration Freq.

1~99bpm

PEEP

1~10 Hpa

Production Capacity

30 Set/Months

YSAV01B1 Hospital Instrument Anesthesia Machine
High-performance pneumatically driven electronically controlled system designed for hospital environments.

🟦 Technical Specifications

System Parameters
Gas Requirement	Medical O2 and N2O (0.32~0.6MPa)
Built-in Ventilator	5.4" LCD display screen
Respiration Modes	IPPV, SIPPV(VCV), IMV, SIMV, PEEP, Manu, Sigh
Flowmeter Range	O2: 0.1~10L/Min, N2O: 0.1~10L/Min
Oxygen Concentration	> 21% in mixed gas
I:E Ratio	4:1 ~ 1:10 (Supports inverse ratio ventilation)
CO2 Absorber Capacity	1 kg
Inspiratory Plateau	0 ~ 1s
Alarm Parameters	Airway pressure (upper/lower), Tidal volume limits, Apnea, AC power failure, Battery low

Operating Conditions & Safety
Ambient Temperature	10 ~ 40 °C
Relative Humidity	≤ 80%
Atmospheric Pressure	860 hPa ~ 1060 hPa
Power Requirement	100-120 Vac, 50/60 Hz
Maximum Safety Pressure	≤ 12.5 kPa
Pressure Limit Range	0 ~ 6.0 kPa

Anesthesia Machine Specifications Detail

YSDEN-500 Intraoral RVG Digital Dental X Ray Sensor

🟦 Frequently Asked Questions

What kind of display does the YSAV01B1 anesthesia machine use?

The system features a 5.4-inch LCD display screen for clear visualization of ventilation parameters and monitoring data.

Which respiration modes are supported by this equipment?

It supports multiple modes including IPPV, SIPPV(VCV), IMV, SIMV, PEEP, Manual, and Sigh, providing versatility for various clinical needs.

What is the tidal volume range for this anesthesia machine?

The tidal volume is adjustable from 0 to 1500 mL, making it suitable for a wide range of patient requirements.

How many flowmeters are included in the gas delivery system?

The machine is equipped with a 4-tube flowmeter system specifically designed for precise delivery of Oxygen (O2) and Nitrous Oxide (N2O).

Does the system include safety alarms?

Yes, it features an extensive alarm system for airway pressure (upper/lower limits), tidal volume limitation, apnea, AC power malfunction, and low battery status.

What options are available for the vaporizer?

Users can choose from Enflurane, Isoflurane, or Sevoflurane vaporizers. Halothane is also available as an additional option.
