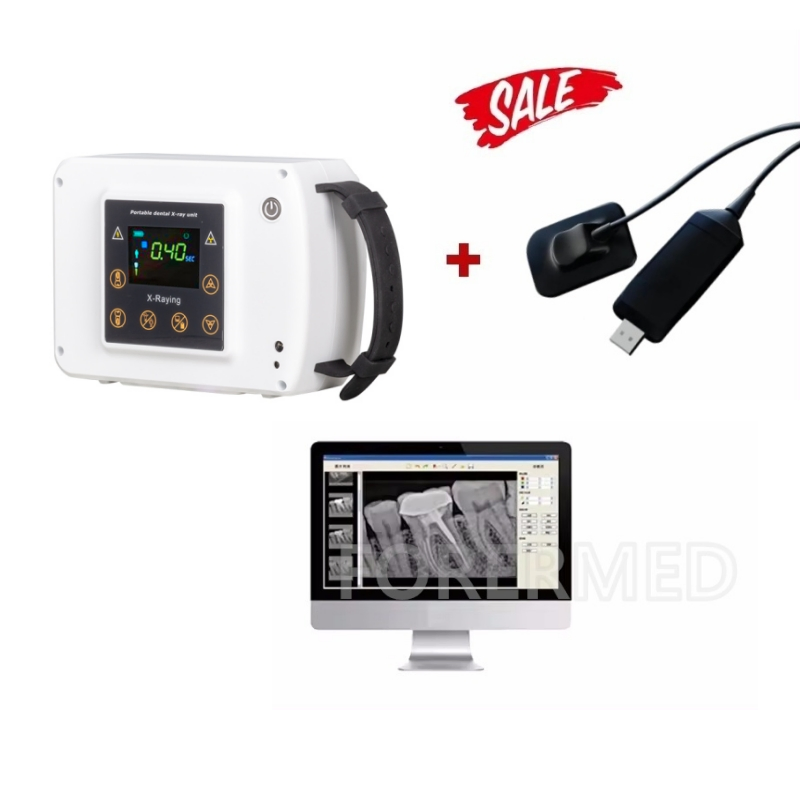

Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
1 / 5
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine
Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine

Digital Dental Handheld X-ray Unit with Sensor Endodontic X-ray Machine

Customization: Available
Applicable Departments: Orthodontic Department
Certification: ISO
Send Inquiry

Product Description

Basic Info.
Model NO.
YJ-DXP11
Type
X-Ray Equipment
Material
Metal
Tube Voltage
60kv
Tube Current
2mA
Exposure Time
0.1-2.0s
Frequency
30kHz
Rate Power
120va
Distance to Cone
118mm
Production Capacity
3000pieces/Month
Product Description
Portable Dental x Ray Machine Price Digital Dental Handheld x-ray Unit With Sensor Endodontic X-ray Machine

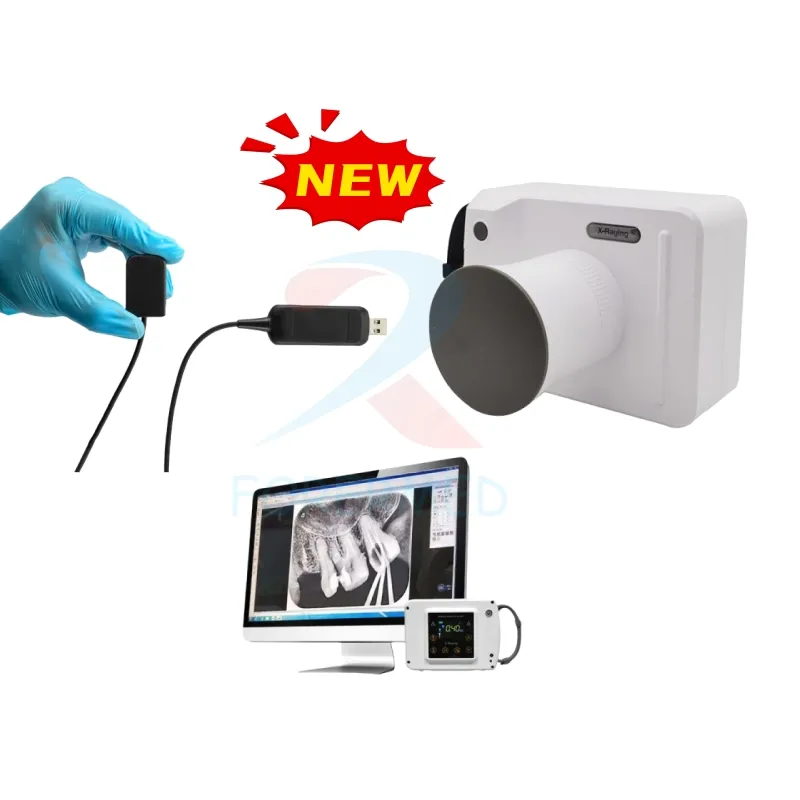

Portable Dental X-ray

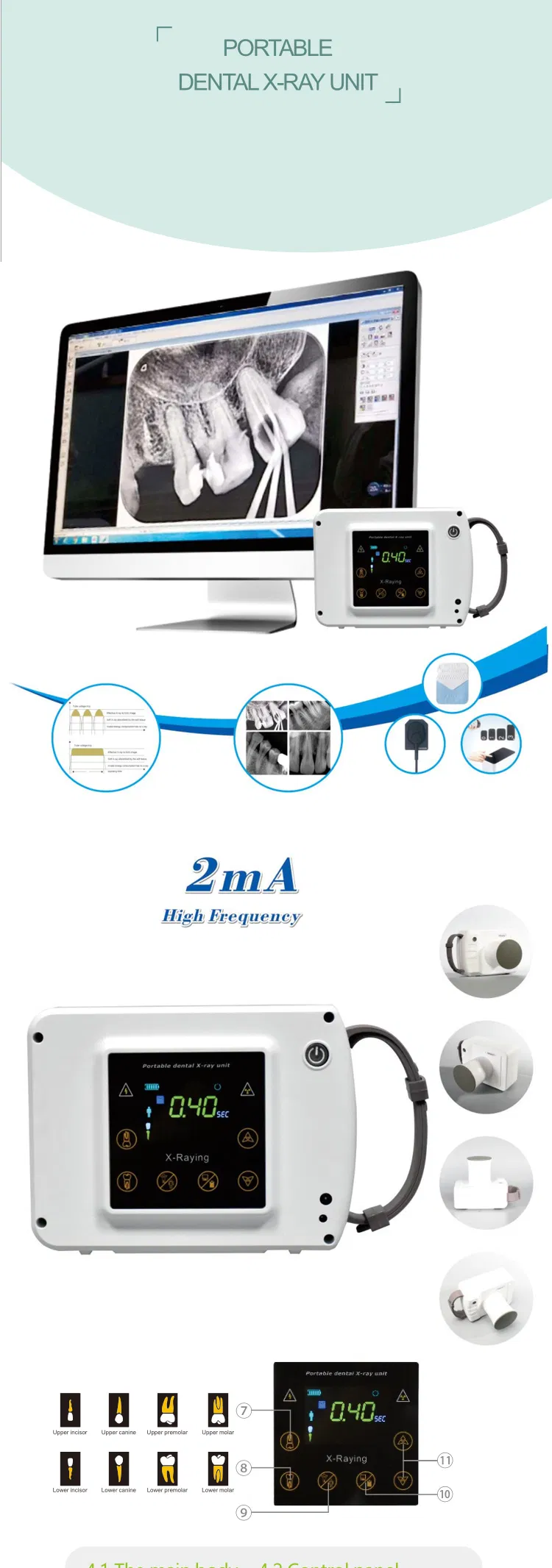

Unit Features
System Analysis

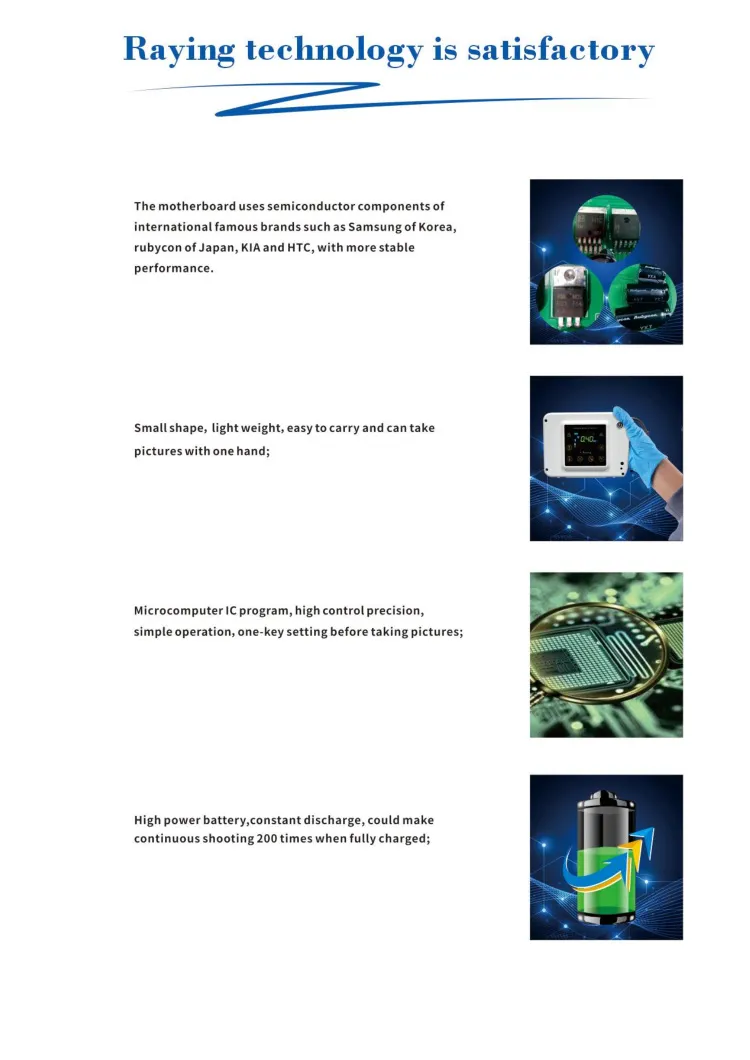

X-ray Components
Product Parameters
Tube voltage60KV
Tube current2mA
Exposure time0.1-2.0s
Frequency30KHz
Rate power120VA
Distance from skin to cone118mm
Tube focus0.8mmx0.8mm
Battery2200mAh
Charger input voltageAC110V-240V
Output voltageDC14.8V-16.8V
Ambient temperature5ºC~40ºC
Relative humidity<75%RH
Net weight2.1KG
Gross weight4.8KG
Size(mm)168mm*158mm*130mm
Package Size(mm)365mm*320mm*245mm
Detailed Photos

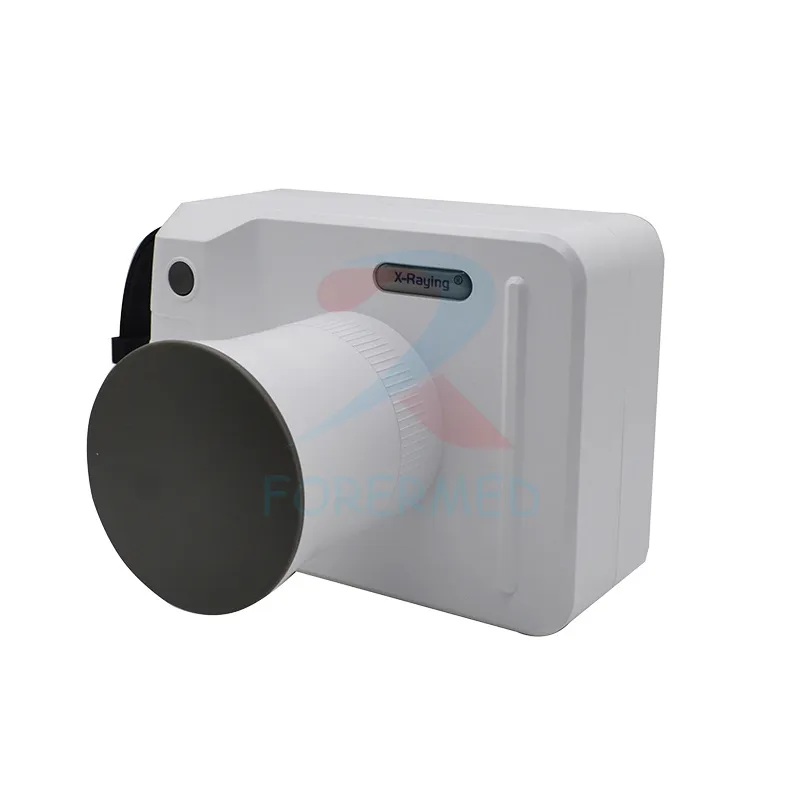

Front View
Side View

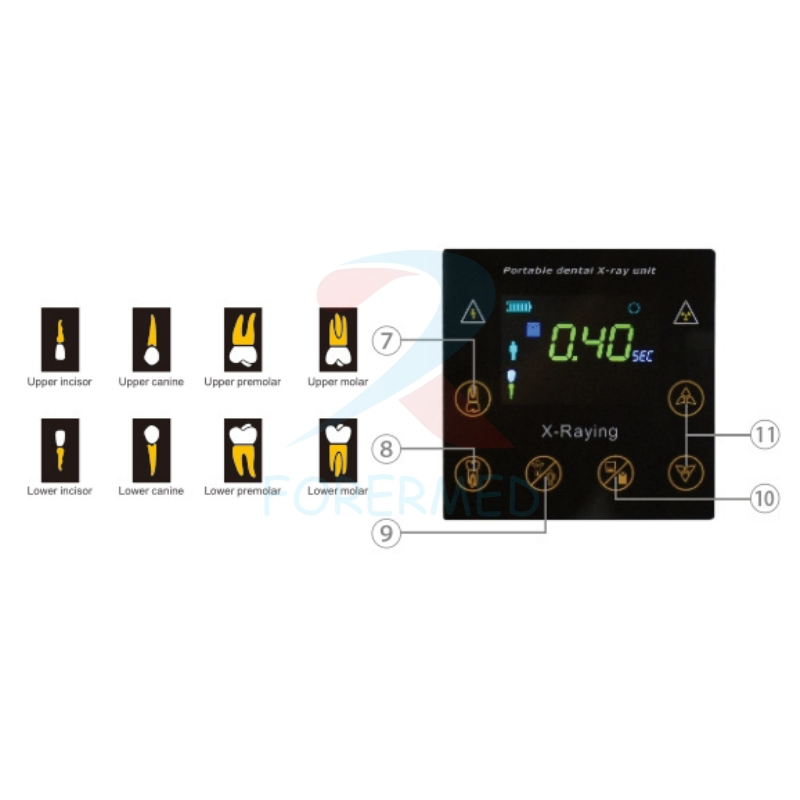

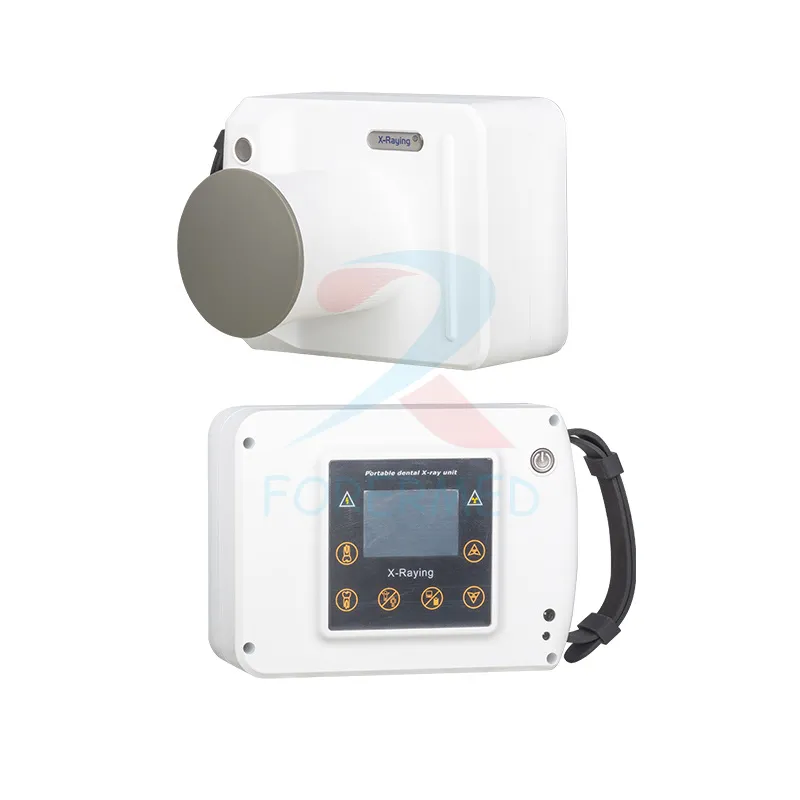

Operating Interface
Company Profile Overview
Manufacturing Environment
Frequently Asked Questions
What are the primary electrical specifications for this portable X-ray unit?
The YJ-DXP11 features a tube voltage of 60KV, a tube current of 2mA, and operates at a frequency of 30kHz with a rated power of 120VA.
How long is the exposure time range for dental imaging?
The exposure time is highly adjustable, ranging from 0.1 to 2.0 seconds, allowing for precise imaging control.
Is the device suitable for handheld use during endodontic procedures?
Yes, it is designed as a lightweight handheld unit (net weight 2.1KG) and is compatible with digital sensors for efficient endodontic X-ray imaging.
What is the battery capacity and charging requirements?
The unit is equipped with a 2200mAh battery. The charger supports a wide input voltage of AC110V-240V, making it compatible with global power standards.
What is the focus size of the X-ray tube?
The tube focus is 0.8mm x 0.8mm, ensuring high-resolution and clear diagnostic images for dental professionals.
What is the distance between the skin and the cone?
The standardized distance from the skin to the cone for this model is 118mm.
