Multi-Functional Foot Pedal Dental Chair Unit Price with Cure Light

Applicable Departments: Orthodontic Department
Certification: ISO, CE
Type: Dental Unit

Product Description

📋 Basic Information
Model NO.
KJ-916(20)
Material
Metal
Name
Dental Unit
Color
Blue/Yellow/Green/Red/...
Spittoon
Tempered Glass/Ceramic
Light
Halogen Lamp/LED Sensor
Certifications
CE & ISO
Cushion
PU/Leather
Production Capacity
1000PCS Per Month
Origin
China
Product Features

Multi-functional Foot Pedal Dental Chair Unit with Cure Light

  • Stable Construction: Full aluminum material with streamline design for high stability and an advanced professional feel.
  • Movable Ceramic Spittoon: Luxury design, convenient for patients and dental professionals to use and maintain.
  • Assistant Tray: Equipped with a key-touch control system for easy operation during procedures.
  • Multifunctional Foot Pedal: Allows direct adjustment of chair position for seamless workflow.
  • Ergonomic Comfort: Hand-made sewed ultra-fiber leather cushion designed to match ergonomic principles, relieving patient fatigue.
  • Advanced Operation Lamp: Energy-saving enclosed luxury lamp that is both safe and fashionable.
  • Instrument Trays: Luxurious glass tray and top-mounted instrument tray options to suit different clinical habits.
  • Intelligent Control: 12-memory position system allows doctors to preset habits with a single key.
  • High-Quality Components: USA-made plastic tubes, Italian solenoid valves, and silicon gel handpiece tubes for durability and aging resistance.

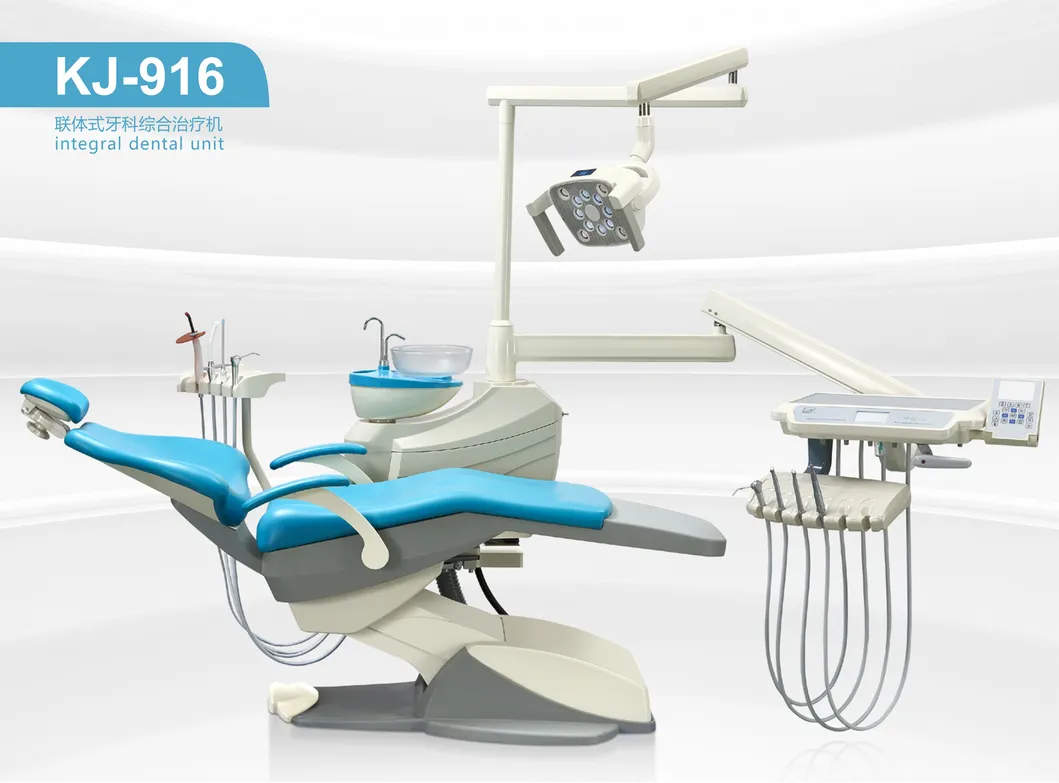

Dental Chair Unit Overview
Dental Chair Technical View
📊 Technical Parameters
Parameter Item Specifications
Working Conditions
Water Pressure0.2~0.4Mpa
Air Pressure>=50L/Mpa
Environmental Temperature5ºC~40ºC
Dental Chair Parameters
Cushion HeightMin <=410mm, Max >=760mm
Backrest Recline110º~170º
Max Load Capacity>=135KG
Power SupplyAC220V, 50Hz / 1000W
Unit Components
LED Lamp Intensity8000-15000 Lux
Mouthwash Temp35-45ºC
Saliva Ejector Rate>=400ml/min
🛠️ Standard Configuration
Handpiece Connector
High speed (2 sets), Low speed (1 set)
3-way Syringe
Cold & Hot (2 pcs)
Suction System
Saliva ejector (Strong & Weak)
Water System
Built-in purified water system
Motor
24V D.C noiseless motor
Stool
Doctor's stool included (1 piece)
📦 Packing & Logistics

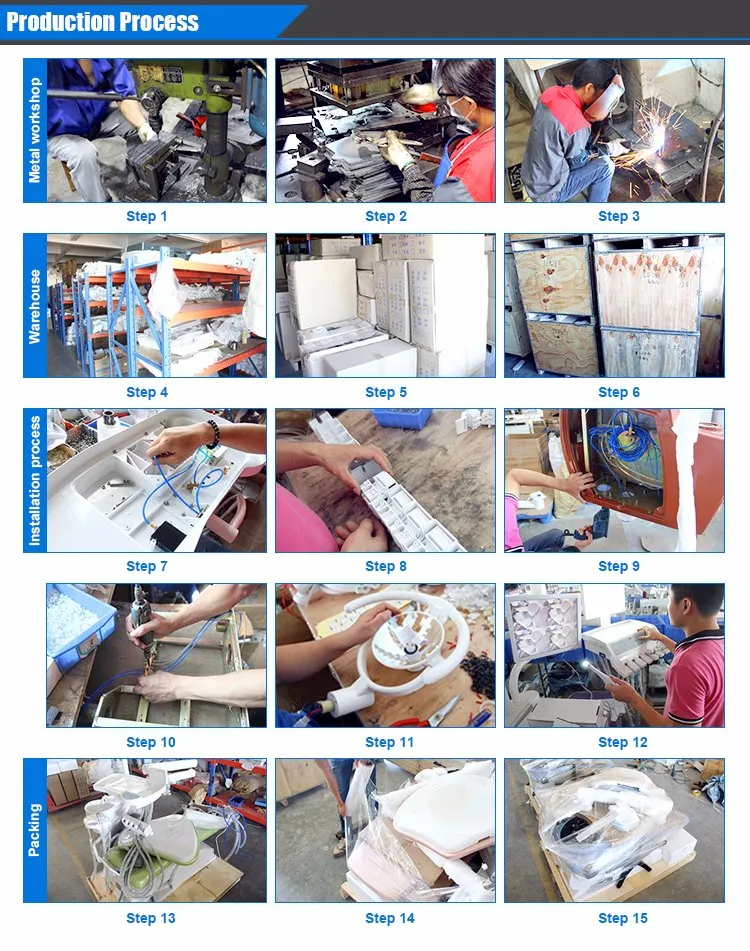

Production Line

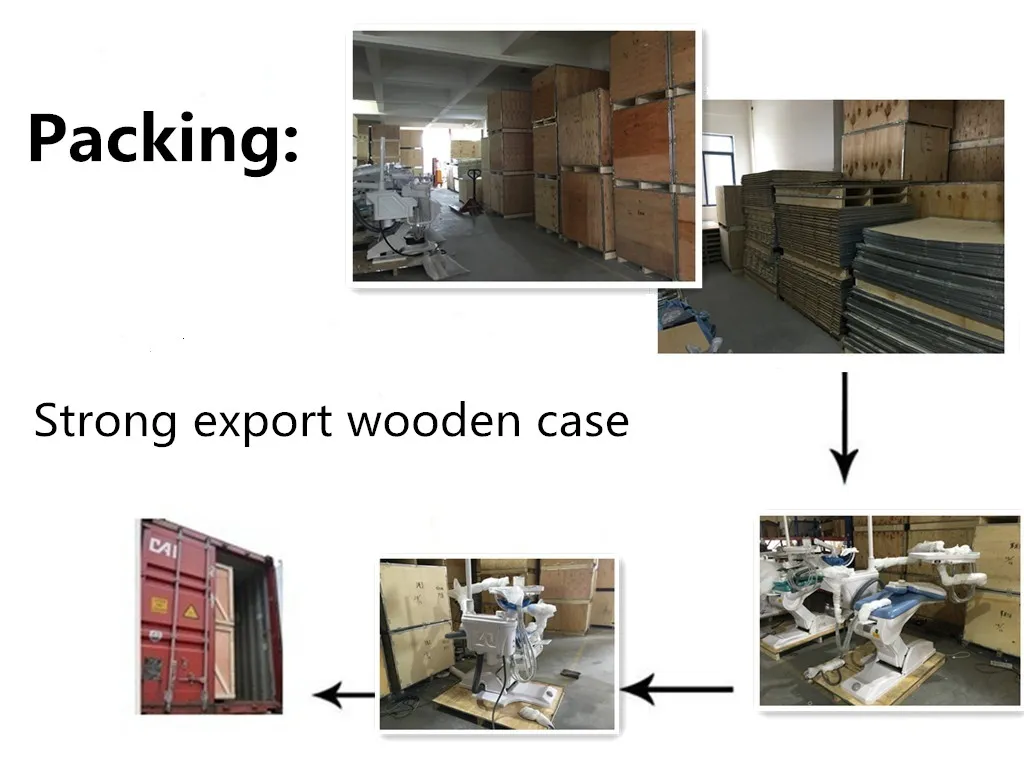

Wooden Case Packing
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a specialized dental chair manufacturer based in China, integrating design, development, and production.
What is the warranty period for the dental unit?
All dental chairs come with a one-year warranty. If any issues arise, we provide free spare parts upon verification of photos.
What certifications do your products hold?
Our equipment is certified with ISO 13485 and CE marks, meeting various international medical device standards.
How fast is the delivery for bulk orders?
Delivery time depends on the quantity and model. Typically, we can complete 20 containers within 5 to 7 days.
How is the product protected during transport?
The units are packed in high-quality wooden cases to ensure safe transport and prevent damage during transit.
Can the chair position be customized?
Yes, the intelligent control system features 12 memory positions that can be set according to the doctor's preference or habits.
